Digital Level Gauge

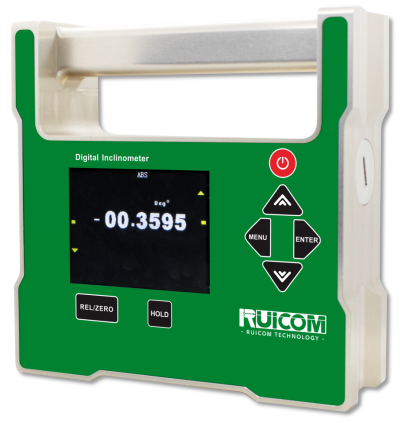

GDS850

Digital Inclinometer

Measurement range: ±30°
Optimal accuracy: <0.002°
Angular resolution: 0.0005°
Capable of recording key measurement data
Customers can calibrate the zero point themselves
Dual strong magnetic measuring surfaces on the bottom left

Product Introduction

The GDS850 is a level gauge developed by RUICOM Technology based on a high-precision tilt measurement platform. It uses a built-in MEMS sensor to sense the Earth's gravitational field, thereby obtaining the horizontal tilt angle of an object. Its built-in 32-bit microprocessor can perform high-resolution sampling of the weak current and tilt angle ratio signals from the front end, achieving an accuracy of 0.002° and a resolution of 0.0005°. The device supports on-site data saving and playback, is suitable for leveling and measuring on high-precision platforms, and features good scalability, ease of operation, industrial-grade reliability, and a competitive price-performance ratio, making it competitive in the international market.

Performance Parameters

GDS850	Parameter	Unit
Angle Measurement Range	±30	°
Measuring Axis	Single axis
Maximum Measurement Accuracy	<0.002(＜5°)、<0.003(5°-30°)	°(RMS)
Angle Measurement Resolution	0.0005	°
Measurement Mode	degrees, millimeters/meters Two modes can be set	/
LCD	64-color true-color luminous display screen	/
LCDViewable Area Size	L60*W45	mm
Operating Temperature	-10°～ +70℃	°/℃
Operating Humidity	85	%RH
Power Supply	2A AA batteries	/
Battery Continuous Working Time	6	h
Vibration Resistance	10g@11ms, triaxial (half-sine wave)	g
Shock Resistance	10grms、10～100Hz	g
Weight	1200g	g
Waterproof Rating	IP54	/
Material	Anodized aluminum alloy	/
Dimensions	L140W140H45mm	mm

Product Dimensions
