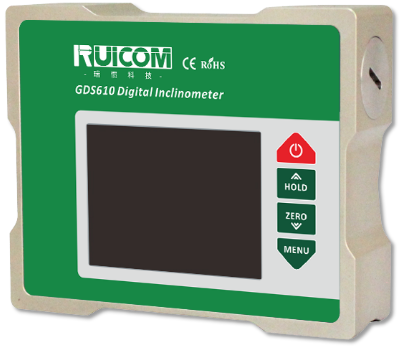

GDS610 High-Precision Digital Inclinometer

Home Products Digital Inclinometer GDS610 High-Precision Digital Inclinometer

Digital Level Gauge

GDS610

High-Precision Digital Inclinometer

Optimal accuracy: <0.02°
Repeatability: 0.004°
Angular resolution: 0.001°
Three-plane reference strong magnetic mounting
Data storage function
Automatic angle interpolation compensation function

Product Introduction

The GDS610 is a high-precision industrial-grade digital tilt measuring instrument designed specifically for angle monitoring and control applications in industrial settings. It is utilizing advanced MEMS sensing technology, combined with a unique cross-axis compensation algorithm and temperature drift correction model, it fully leverages the computational power of MEMS to ensure excellent long-term stability and repeatability of measurement data.

The device boasts a single-axis measurement range of ±90°, a high resolution of 0.001°, rapid response, and stable output. Its innovative three-dimensional magnetic mounting design (including strong magnetic adsorption structures on the sides and bottom) enables multi-reference surface measurement, significantly enhancing on-site installation flexibility. The GDS610 series integrates a data storage module, supports switching between three measurement units (degrees, minutes, seconds/decimal angles/mm per meter), and combines excellent system scalability, ease of operation, and reliability in industrial environments, maintaining strong competitiveness in the international market with its outstanding cost-performance ratio.

Performance Parameters

GDS610	Parameter
Angle Measurement Range	±90°	±30°
Measuring Axis	Single-axis	Dual-axis
Maximum Measurement Accuracy (RMS)	<0.02° (Full range)	<0.005° (Full range)
Angle Measurement Resolution	0.001°	0.001°
Repeatability	0.004°	0.004°
Measurement Mode	Degrees, minutes, seconds, angles, and mm/m modes are settable.
LCD Display	64-color true-color luminous display screen
LCD Viewable Area Size	L60.5mm*W45mm
Operating Temperature	-10℃～+70℃
Operating Humidity	85%RH
Battery Specifications	One 2A AA battery or AA NiMH rechargeable battery
Battery Continuous Operating Time	6 hours (2000mAh battery)
Vibration Resistance	10g@11ms, triaxial (half-sine wave)
Shock Resistance	10grms、10～100Hz
Weight	600g
Waterproof Rating	IP54
Material	Abrasion-resistant aluminum alloy
Dimensions	L115W95H32mm
Precautions	For the highest measurement accuracy, please set the latitude information of your local city. The settings will be automatically saved after completion. (Refer to point 3, sub-point 3 of point 3 in the main interface function introduction of this specification)

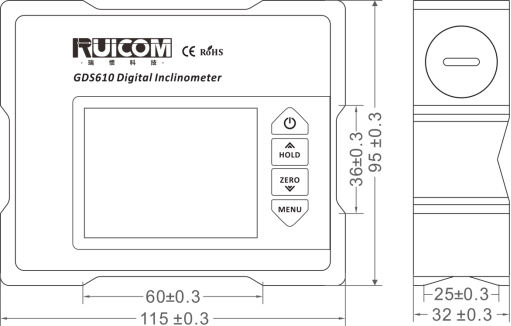

Product Dimensions
