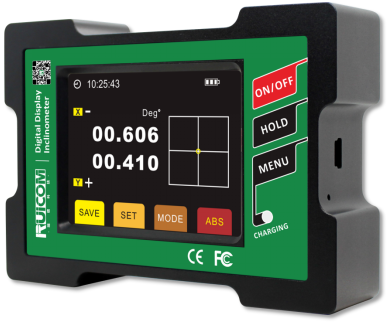

GDS8 Series Digital Inclinometer

Home Products Digital Inclinometer GDS8 Series Digital Inclinometer

Digital Level Gauge

GDS8

Series Digital Inclinometer

Full-range accuracy better than 0.005°
Repeatability error ≤0.003°
Supports absolute/relative measurement switching
It can record key measurement data
Strong magnetic adsorption design adapts to different installation requirements
Angle over-limit alarm can be set

Product Introduction

RUICOM Technology GDS8 series digital inclinometer is a high-precision angle measurement and control device specifically developed for industrial applications. This product, the result of three years of technological breakthroughs, employs micro-mechanical sensing technology and features dual measurement cores. Through a dynamic compensation mechanism between the Y and X axes, combined with a proprietary cross-compensation algorithm and temperature compensation model, it significantly improves measurement accuracy and long-term stability.

Product Features: 1. Supports single/dual-axis measurement, with a range of ±30°. 2. Resolution 0.001°, full-range accuracy <0.005°. 3. Fast-response design, stable and reliable data output. 4. Innovative magnetic structure, supporting multi-directional installation (side/bottom). 5. Equipped with data storage function, supporting switching between three measurement units (angle/degree/minute/second/mm/m). This product offers significant advantages in industrial reliability, ease of operation, and cost-effectiveness. Its technological innovation has been protected by multiple patents, enabling it to meet the precise measurement needs of various harsh industrial environments.

Performance Parameters

Parameter	GDS810		GDS820		Unit
Measuring Axis	Single-axis	Single-axis	Dual-axis	Dual-axis	Axis
Angle Measurement Range	±15°	±30°	±15°	±30°	°
Angle Measurement Accuracy (Full Range)	<0.005	<0.01	<0.005	<0.01	°
Angle Measurement Resolution	0.001	0.001	0.001	0.001	°
mm/m Measurement Range	267	577	267	577	mm/m
mm/m Measurement Accuracy	0.1	0.2	0.1	0.2	mm/m
mm/m Measurement Resolution	0.02	0.02	0.02	0.02	mm/m
Repeatability	0.003	0.003	0.003	0.003	°
Measurement Mode	Three modes can be set: angle, degrees/minutes/seconds, and millimeters/meters.
Operating Temperature	-10℃～ +70℃
Operating Humidity	85%RH
Power Supply	3.7VThree modes can be set: angle, degrees/minutes/seconds, and millimeters/meters.
Ideal Charging Time	5hours
Battery Continuous Operating Time	11hours
Data Output Signal	USB2.0(virtual serial port device)
Included Host Computer Software	VCapplication software
Connectors	Standard USB connector, rechargeable
Vibration Resistance	10g@11ms, triaxial (half-sine wave)
Shock Resistance	10grms、10～100Hz
Waterproof Rating	IP54
Material	Anodized aluminum alloy
LCDScreen	64-color true-color luminous display screen
LCDViewable Area Size	L57.6*W43.2mm
Dimensions	L109×W77×H27mm
Weight	≤350g

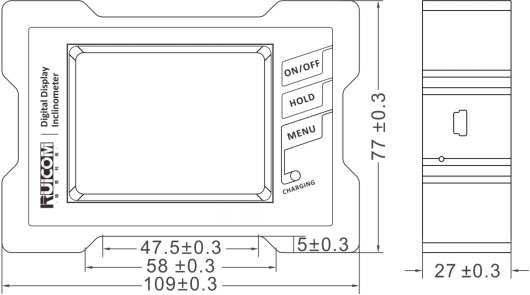

Product Dimensions
