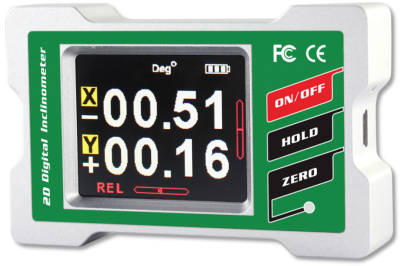

Digital Level Gauge

GDS4

SERIES ELECTRONIC

Accuracy: 0.05°
Angle resolution: 0.01°
Operating temperature: -10 ℃ to+70 ℃
Rnge: single axis ±180°, dual axis ±90°
Absolute/relative measurement

Product Introduction

The GDS4 series is a high-precision electronic level instrument independently developed by RUICOM Technology, specifically designed for angle control and measurement in industrial fields. The core of this product is based on a micro mechanical control system and a dual core measurement unit. During the measurement process, real-time compensation can be implemented on the X axis through the Y axis, and combined with cross compensation and temperature compensation model algorithms, fully utilizing the powerful computing power of micro mechanical electronic principles to ensure excellent measurement stability and repeatability of the instrument in long-term use.

Among them, GDS41180 supports single axis ±180° measurement, GDS4290 supports dual axis ±90° measurement, with a resolution of 0.01° and a full range accuracy better than 0.05°. It has the characteristics of rapid response and stable data output. The product is specially designed with strong magnetic adsorption installation on the side and bottom in terms of structure, allowing both reference surfaces to be used for measurement, greatly improving the convenience of customer use. This series of products not only has strong scalability and easy operation in practical applications, but also has industrial grade reliability and excellent cost-effectiveness, which gives it a significant competitive advantage in the international market.

Performance Parameters

PARAMETERS	GDS41180	GDS4290	unit
Measurement axis	Single axis	Dual axis	/
Angle measurement range	±180	±90	°
Angle measurement accuracy	0.05(full range)	0.05(full range)	°
Angle measure resolution	0.01	0.01	°
mm/m measure range	±999.9	±999.9	mm/m
mm/m measurement accuracy	0.9(full range)	0.9(full range)	mm/m
mm/m measurement resolution	0.1	0.1	mm/m
LCD visible area size	L40*W32		mm
Working temperature	-10～+70		℃
Working humidity	85		%RH
Power supply	3.7V Charging Lithium battery		V
Ideal charging time	3		h
Battery continuous working time	8（±0.5）		h
Data output signal	USB		/
Anti-vibration	10g@11ms、3 Axial Direction (Half Sinusoid)		g
Impact resistance	10grms/10~100Hz		g
Waterproof level	IP54		/
Material	Metal aluminum		/
Size	L83W19H53mm		mm
Weight	≤140		g

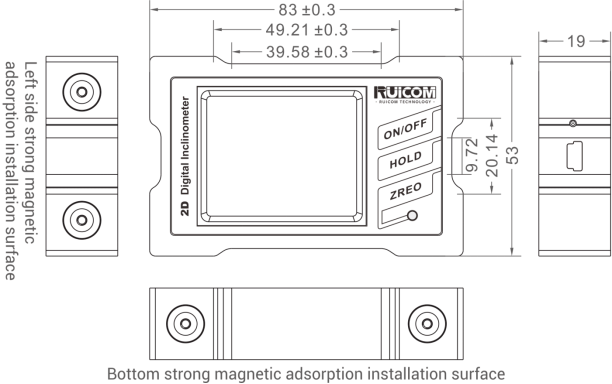

Product Dimensions
