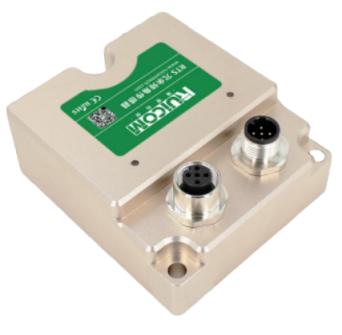

Dual-Channel Redundant Tilt Sensor

Single-axis measurement range ±180° , Dual-axi
Accuracy : ±0.1°
Resolution 0.1°
DC 9～36V wide voltage input
High vibration resistance >2000g
Wide operating temperature range -40～ +85℃

Product Introduction

RTS series tilt sensor employs a dual-channel redundancy architecture and a single-axis measurement design , achieving a highly reliable system through hardware and software redundancy. The two independent working channels serve as backups for each other; if one channel fails , the other channel ensures continued stable system operation. This design not only enhances fault detection and diagnosis capabilities but also effectively suppresses noise interference through dual-channel data comparison. Significantly improves measurement accuracy This allows it to maintain excellent anti-interference performance and measurement reliability even under complex working conditions.

The product conforms to the CANOPEN communication protocol standard. The entire system, from hardware circuitry to software algorithms, employs redundant design. The precise structural design provides excellent electromagnetic compatibility and protection levels. Each device undergoes rigorous calibration and digital filtering before leaving the factory to ensure measurement accuracy meets technical specifications. The device's operating status is displayed in real-time via dual-color LED indicators and a status register. This greatly facilitates users' system debugging and equipment maintenance work.

Performance Parameters

RTS	condition	parameter
Measurement range		Single axis ±180°
Measuring axis		Xaxis
Resolution1)		0.1°
Measurement accuracy2)	@25℃	±0.1°
Zero-point temperature coefficient	-40～85℃	±0.02°/℃
Power-on startup time	0.5s
Cutoff frequency	0.9Hz
Output signal	CAN OPEN
Electromagnetic compatibility	According to EN61000 and GBT17626
Mean Time Between Failures (MTBF)	≥98000 hours/time
Insulation resistance	≥100 megaohms
Impact resistance	100g@11ms, triaxial (half-sine wave)
Vibration resistance	10 grms, 10 ~ 1000 Hz
Waterproof rating	IP67
weight	≤350g (excluding cable)
Resolution: refers to the smallest change in the measured quantity that a sensor can detect and distinguish within its measurement range . Measurement accuracy: refers to the combined error of the sensor's linearity, repeatability, hysteresis, zero-point deviation, and horizontal axis error under normal temperature conditions.

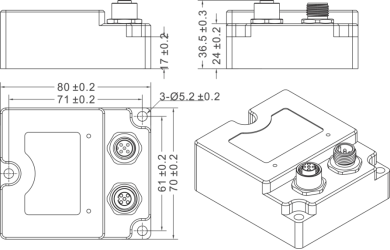

Product Dimensions
