NTS3 Digital tilt sensor

Home Products Tilt sensor NTS3 Digital tilt sensor

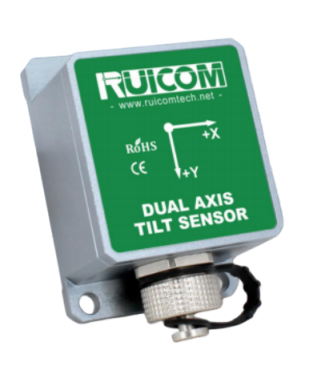

Inclination Sensor

NTS3

Digital tilt sensor

Single/dual axis tilt measurement
Measuring range ±10 ~ ±90° optional
Resolution 0.02°
Standard DC 5V power supply
IP 67 protection level

Product Introduction

The NTS 3 series tilt sensor is a compact digital output MEMS tilt sensor from Ruiguan Technology. This product features a built-in dual-channel gravity tilt unit that measures static gravitational acceleration and converts it into tilt angle changes, thereby determining the sensor's output roll and pitch angles relative to the horizontal plane. Users can choose RS 232, RS 485, or TTL level interfaces as the output method according to their needs. The product incorporates an MCU control system to perform secondary correction of the sensor output linearity, compensating for the accuracy loss caused by insufficient correction in analog sensors .

This product employs a non-contact measurement principle, providing real-time output of the current attitude tilt angle. It is easy to operate and eliminates the need to relocate two opposing surfaces for installation. This sensor is primarily suitable for angle measurement in static and slowly changing dynamic scenarios and possesses excellent resistance to external electromagnetic interference. It can operate stably for a long time in harsh industrial environments.

Performance Parameters

NTS3	condition	parameter				unit
Measurement range		±10	±30	±60	±90	°
Measuring axis		X Y	X Y	X Y	X Y	axis
resolution		0.02	0.02	0.02	0.02	°
Measurement accuracy	@25℃	0.1	0.1	0.1	0.1	°
Zero-point temperature coefficient	-40～85℃	±0.02	±0.02	±0.02	±0.02	°/℃
Sensitivity temperature coefficient	-40～85℃	≤150	≤150	≤150	≤150	ppm/℃
Power-on startup time		0.5	0.5	0.5	0.5	S
Response frequency		20	20	20	20	Hz
Output rate	5Hz15Hz35Hz50Hzis adjustable
Output signal	RS232/RS485/TTLCustomizable
Electromagnetic compatibility	According toEN61000 andGBT17626
Mean Time Between Failures (MTBF)	≥98000 hours/time
Insulation resistance	≥100 megaohms
Impact resistance	100g@11ms, triaxial (half-sine wave)
Vibration resistance	10grms10～1000Hz
Waterproof rating	IP67
cable	Standard configuration: 2-meter length, wear-resistant.Oil-resistant, wide-temperature-range, shielded cable (4*0.3mm²)
weight	≤105g

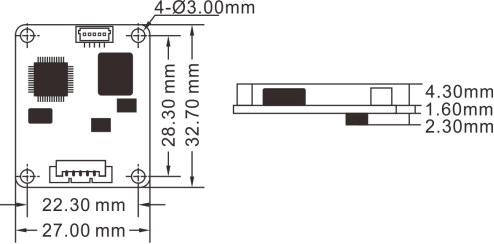

Product Dimensions
