Inclination Sensor

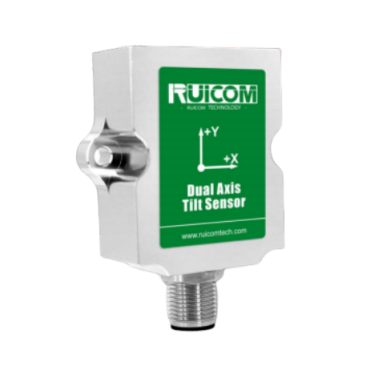

LTS6

Digital low-power tilt sensor

Six installation methods
Zero point can be set on-site
Output methods: RS 232 / RS 485 / TTL
3500g

Product Introduction

The LTS6 digital output series tilt sensor is a high-performance, cost-effective all-attitude angle measurement device developed based on independent core technologies . This product utilizes an innovative anti-interference structural platform. Integrating next-generation MEMS sensing elements It features wide operating temperature range, excellent resistance to mechanical vibration, and long-term operational stability. It is designed to have a service life of up to 10 years.

This product is based on the principle of non-contact measurement. It detects the Earth's gravity vector component through a built-in high-precision capacitive MEMS sensor unit, and calculates and outputs the tilt angle in real time using a dedicated algorithm. Its installation is flexible and convenient; it can be directly fixed to the surface of the object being measured without the need for additional mechanical shafts or fixing systems. Supports multiple installation options It can fully meet the measurement needs of different industrial scenarios, and is particularly suitable for attitude monitoring applications in industrial fields such as engineering machinery and agricultural equipment.

Performance Parameters

LTS6	parameter
resolution	0.1°
Measurement accuracy (@25℃)	±0.2°
Response time	0.05s
Temperature drift characteristics (-40℃)~+85℃	±0.5°
Output load	>500 ohms
Working hours	99,999 hours/time (without failure)
Insulation resistance	>100 megaohms
Vibration resistance	10grms10~1000Hz
Impact resistance	100g@11ms, triaxial (half-sine wave)
size	L64.5×W50×H18.5mm
weight	≤200g
