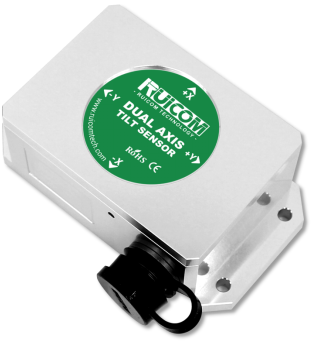

HTS6 High-Precision Voltage Output Tilt Sensor

Home Products Tilt sensor HTS6 High-Precision Voltage Output Tilt Sensor

Inclination Sensor

HTS6

High-Precision Voltage Output Tilt Sensor

Measuring range ±1~±90° selectable
Accuracy: 0.005°
Resolution: 0.001°
Output mode: 0~5V

Product Introduction

The HTS6 series analog voltage output tilt sensor, a representative product in the domestic high-precision tilt measurement field, supports single-axis/dual-axis measurement modes, achieving an industrial-grade accuracy of 0.005° in small-range applications. Based on the principle of gravity field vector decomposition, this product senses changes in the static gravity field through a miniature solid-state pendulum structure, converting the tilt change into a standard voltage signal (0-5V) output via a high-precision sensing element.

The core component employs a 24-bit differential-to-analog converter, coupled with an embedded MCU system for real-time signal processing, featuring automatic temperature compensation and nonlinear correction. This design significantly reduces the impact of ambient temperature fluctuations on measurement accuracy, allowing users to directly obtain industrially calibrated linearized output without secondary calibration. The product innovatively adopts a non-contact measurement solution, eliminating the need for reference surface alignment during installation. Based on advanced MEMS manufacturing processes, it boasts a compact structure for easy installation and strong resistance to electromagnetic interference; suitable for industrial-grade attitude monitoring and control.

Performance Parameters

HTS6		Condition	Parameter
Measurement range		-	±10°	±30°	±60°	±90°
Measurement axis		-	X / XY axis
Zero output		-	2.5V
Resolution1)		-	0.001°
Accuracy	Maximum Absolute Error (MAE)2)	Room Temp	0.005°	0.01°	0.02°	0.03°
	Root Mean Square Error (RMSE)3)	Room Temp	0.003°	0.003°	0.005°	0.008°
Zero-point tempcoefficient4)		-40~85℃	0.0005°/℃
Sensitivity temp coefficient5)		-40~85℃	≤100ppm/℃
Power-on start-up time		0.5S
Response frequency		20Hz
Electromagnetic compatibility		According to EN61000 and GBT17626
Insulation resistance		≥100MΩ
Shock resistance		100g@11ms,3 Axial Direction (Half Sinusoid)
Vibration resistance		10grms,10~1000Hz
Protection class		IP67
Cable weight		Standard configuration includes a 1-meter 7P*6.8mm aviation connector/abrasion-resistant/wide temperature range/shielded cable, with a cable weight of ≤110g
Weight		≤250g (excluding cable)
1)Resolution:The smallest identifiable angular change within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations. 2)MAXE:refers to the biggest error of the product within the range and at multiple angle points. 3)RMSE:refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times). 4)Zero TempDrift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree. 5)Sensitivity TempDrift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.

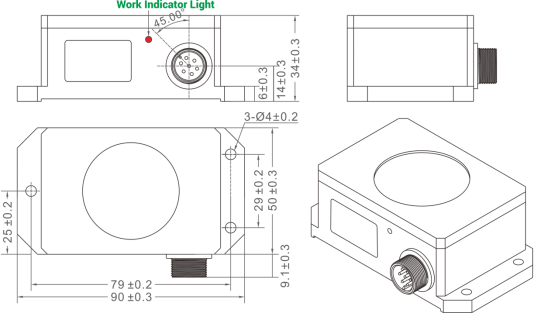

Product Dimensions
