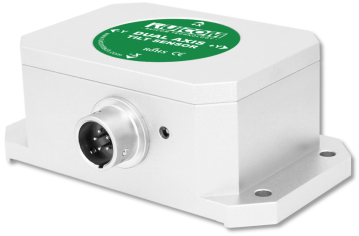

HTS6 High-Precision Digital Output Tilt Sensor

Home Products Tilt sensor HTS6 High-Precision Digital Output Tilt Sensor

Inclination Sensor

HTS6

High-Precision Digital Output Tilt Sensor

Measuring range ±1~±90° selectable
Small measuring range accuracy 0.005°
Resolution 0.001°
DC 9~36V wide voltage input

Product Introduction

The HTS6 series high-performance single/dual-axis tilt sensors, while maintaining stable and reliable characteristics, further improve measurement accuracy and optimize temperature drift performance. This product integrates a high-precision 16-bit differential A/D converter, combined with a 5th-order digital filtering algorithm, to accurately measure the roll and pitch angles of the sensor relative to the horizontal plane.

Multi-protocol digital output: Supports RS485, RS232, RS422, and TTL interfaces to adapt to different industrial communication needs. Intelligent temperature drift compensation: Built-in high-precision digital temperature sensor, real-time correction of temperature drift error (optional temperature output), ensuring excellent repeatability in a wide temperature range. Industrial-grade reliability: Utilizing a reinforced design, this product is suitable for harsh industrial environments due to its excellent expandability and environmental adaptability, possessing superior anti-interference capabilities and long-term stability.

Performance Parameters

HTS6	Condition	Parameter
Measurement Range	-	±10°	±30°	±60°	±90°
Measurement Axis	-	Single-axis / Dual-axis
Resolution1)	-	0.001°
Measurement Accuracy2)	@25℃	0.005°	0.01°	0.01°	0.02°
Long-Term Stability		0.01°	0.02°	0.05°	0.08°
Zero-Point Temperature Coefficient3)	-40~85℃	0.0005°/℃
Sensitivity Temperature Coefficient4)	-40~85℃	≤50ppm/℃	≤50ppm/℃	≤50ppm/℃	≤100ppm/℃
Power-On Startup Time	0.5S
Response Frequency	20Hz
Output Rate	5Hz/15Hz/35Hz/50Hz/ 100Hzopional
Output Signal	RS232/RS485/RS422/TTL/MODBUS
Electromagnetic Compatibility	According to EN61000 and GBT17626
Mean Time Between Failures (MTBF)	≥99999 hours/time
Insulation Resistance	≥100megaohms
Shock Resistance	100g@11ms, triaxial (half-sine wave)
Vibration Resistance	10grms、10~1000Hz
Protection Class	IP67
Wiring	Standard configuration includes a 2-meter 7P*6.8mm aviation connector/abrasion-resistant/wide temperature range/shielded cable, cable weight ≤110g
Weight	≤250g (excluding cable)
*The maximum range for a single axis is ±90°, and the maximum range for a dual axis is ±89.5°.
1) Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations. 2) Measurement Accuracy: A comprehensive evaluation of the sensor's performance indicators under standard ambient temperature, including the overall performance of linearity error, repeatability error, hysteresis error, zero-point offset error, and cross-axis sensitivity error. 3) Zero-Point Temperature Coefficient: The ratio of the sensor's output value to temperature when the sensor is in a zero-input state, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value. 4) Sensitivity Temperature Coefficient: A stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

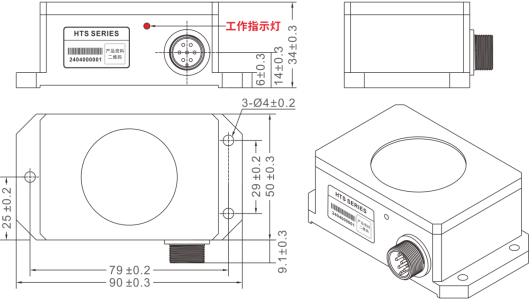

Product Dimensions
