HTS6 High-Precision CAN Open Output Tilt Sensor

Home Products Tilt sensor HTS6 High-Precision CAN Open Output Tilt Sensor

Inclination Sensor

HTS6

High-Precision CAN2.0A Output Tilt Sensor

Measuring range selectable from ±1° to ±35°
Small measuring range accuracy 0.001°
Resolution 0.001°
High vibration resistance >2000g
Wide voltage input DC 9～36V
CAN Open signal output

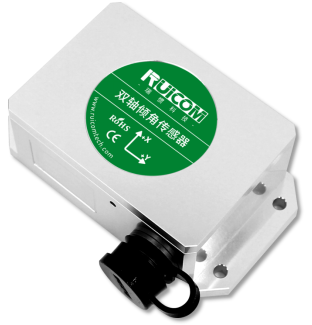

Product Introduction

RUICOM Technology's independently developed HTS6-CANopen tilt meter, while maintaining the excellent stability of the STS series, further optimizes measurement accuracy and temperature drift performance, ensuring more precise and reliable attitude detection. This product integrates a high-precision 16-bit A/D differential converter, combined with a fifth-order digital filtering algorithm, to accurately measure the tilt and pitch angles of the sensor relative to the horizontal plane.

The CANopen communication interface supports industrial standard protocols for easy system integration; the built-in high-precision digital temperature sensor supports real-time temperature drift compensation (temperature output optional), ensuring excellent repeatability under wide temperature environments; a 50Hz high response frequency (higher frequencies can be customized) meets dynamic measurement needs; industrial-grade design provides strong anti-interference capabilities, adapting to harsh industrial environments; high reliability and strong scalability make it suitable for high-precision applications such as engineering machinery, automation control, and platform calibration. RUICOM Technology can provide customized solutions based on customer needs to facilitate precise measurement and intelligent control.

Performance Parameters

HTS6	Condition	Parameter
Measurement Range		±10°	±35°
Measurement Axis		Single-axis / Dual-axis	Single-axis / Dual-axis
Resolution1)		0.001°	0.001°
Measurement Accuracy2)	@25℃	0.005°(RMS)	0.01°(RMS)
Long-Term Stability		0.01°	0.02°
Zero-Point Temperature Coefficient3)	-40～85℃	±0.002°/℃	±0.002°/℃
Sensitivity Temperature Coefficient4)	-40～85℃	≤50ppm/℃	≤50ppm/℃
Power-On Startup Time		0.5s	0.5s
Response Frequency		20Hz	20Hz
Output Rate	5Hz/15Hz/35Hz/50Hzconfigurable
Output Signal	CAN OPEN
Electromagnetic Compatibility	According to EN61000 and GBT17626
Mean Time Between Failures (MTBF)	≥99999 hours/time
Insulation Resistance	≥100megaohms
Shock Resistance	100g@11ms, triaxial (half-sine wave)
Vibration Resistance	10grms、10～1000Hz
Protection Class	IP67
Wiring	Standard configuration includes a 2-meter 7P*6.8mm aviation connector/abrasion-resistant/wide temperature range/shielded cable, cable weight ≤110g
Weight	≤250g (excluding cable)
1) Resolution: The smallest angular change that can be detected within the effective measurement range, reflecting its ability to monitor minute tilt fluctuations. 2) Measurement Accuracy: A comprehensive evaluation of the sensor's performance indicators under standard ambient temperature, including the overall performance of linearity error, repeatability error, hysteresis error, zero-point offset error, and cross-axis sensitivity error. 3) Zero-Point Temperature Coefficient: The ratio of the sensor's output value to temperature when the sensor is in a zero-input state, defined as the ratio of the zero-point offset within the rated operating temperature range to the room temperature reference value. 4) Sensitivity Temperature Coefficient: A stability index of the sensor's full-scale output value with temperature changes, characterizing the drift rate of sensitivity relative to the room temperature reference value within the rated temperature range.

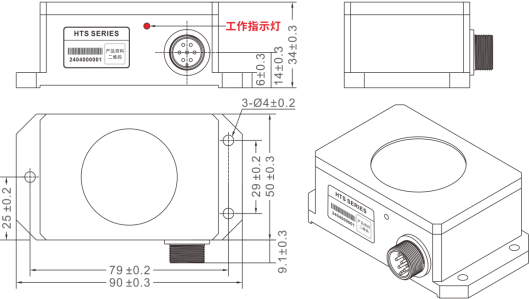

Product Dimensions
