VTS6D Vibration Tilt Angle Sensor Sensor

Home Products Tilt sensor VTS6D Vibration Tilt Angle Sensor Sensor

Inclination Sensor

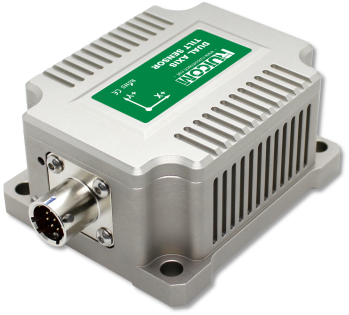

VTS6D

Vibration Tilt Angle

Dual axis inclination measurement
Range ±10°
Accuracy: 0.001°
Horizontal/vertical optional

Product Introduction

The VTS is a high-precision industrial-grade sensor developed by RUICOM Technology specifically for the field of vibration and tilt angle measurement. All products undergo rigorous full-temperature-range calibration compensation and stability testing over a certain period before leaving the factory, ensuring exceptional measurement performance under various environmental condition. Equipped with an inbuilt Fast Fourier Transform (FFT) algorithm, it can accurately detect mechanical vibrations within the 0.5~20Hz range, enabling precise calculation of the peak velocity and maximum displacement amplitude of vibrating bodies through frequency analysis.

The device supports multiple communication protocols, including the industrial-standard MODBUS protocol, and is equipped with professional data analysis software, enabling real-time monitoring, recording, and in-depth analysis of measurement data. It offers various interface configuration options such as RS485/RS422/RS232 to meet diverse industrial application needs. Featuring a non-contact installation design, the sensor can be securely mounted on the target surface with just screws, automatically performing horizontal tilt angle calculations to significantly enhance deployment efficiency.

With excellent electromagnetic interference resistance and outstanding mechanical shockproof performance, the VTS series has been successfully applied to high-end mobile platforms such as satellite communication vehicles, special command vehicles, and radar antenna vehicles, providing reliable solutions for attitude measurement in complex environments.

Performance Parameters

VTS6D	Parameters
Measure range	±10°
Measure axis	XY
Resolution1)	0.0005°
Measure accuracy2)	0.001°
Zero temp coefficient3)	0.0003°/℃
Sensitivity temp.coefficient4)	≤50ppm/℃
Power on time	<0.5S
Response frequency	20Hz
Output rate	5Hz/10Hz/25Hz/35Hz/50Hz/100HzCan be set
Output signal	RS485/RS232/RS422 Optional
EMC	According to EN61000 and GBT17626
MTBF	≥98000 hour/time
Insulation Resistance	≥100 MΩ
Shockproof	100g@11ms / 3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms/10~1000Hz
Protection grade	IP67
Cables	Standard 1 meter long wear-resistant, wide temperature, shielded cable, aviation connector, weight ≤150g
Weight	≤400g (Excluding cable)

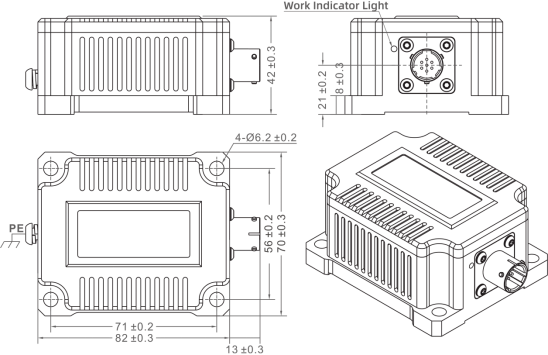

Product Dimensions
