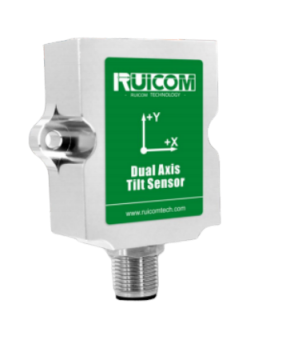

Inclination Sensor

LTS6

Low-power tilt sensor with current output

4 ~20 mA output
Wide voltage input 9 ~36V
High vibration resistance >3500g
Long working life for 10 years

Product Introduction

The LTS6 series current output tilt sensor is a high-performance, cost-effective all-attitude angle measurement product independently developed by Ruiguan Technology. Built on an innovative anti-interference platform Equipped with next-generation MEMS sensing technology It has wide temperature range adaptability and excellent vibration resistance. Excellent work stability It is designed to have a service life of up to 10 years.

This product uses a non-contact measurement principle. Changes in the gravitational component are detected using a high-precision capacitive MEMS unit. It calculates tilt angles in real time . Installation is flexible and convenient; it can be directly fixed to the surface of the object being measured without requiring additional mechanical shaft structures. It supports installation adaptation in multiple scenarios and can be widely used in engineering machinery, agricultural equipment, and industrial automation , providing customers with reliable tilt angle measurement solutions.

Performance parameters

LTS6	parameter
Output current	4~20mA
resolution	0.1°
Measurement accuracy (@25℃)	±0.2°
Response time	0.05s
Temperature drift characteristics (-40℃)~+85℃	±0.5°
Output load	>500 ohms
Working hours	99,999 hours/time (without failure)
Insulation resistance	>100 megaohms
Vibration resistance	10grms10~1000Hz
Impact resistance	100g@11ms, triaxial (half-sine wave)
size	L64.5×W50×H18.5mm
weight	≤200g

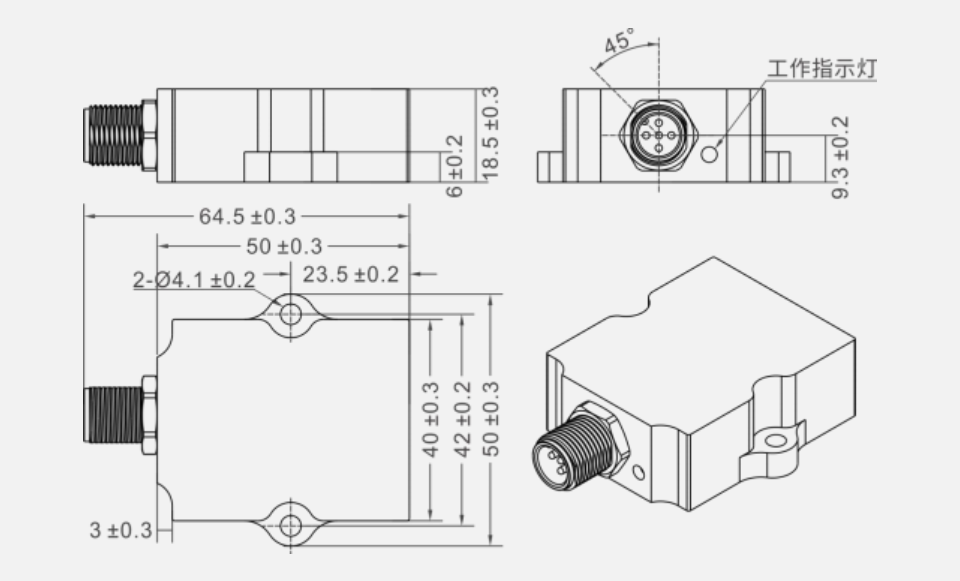

Product Dimensions
