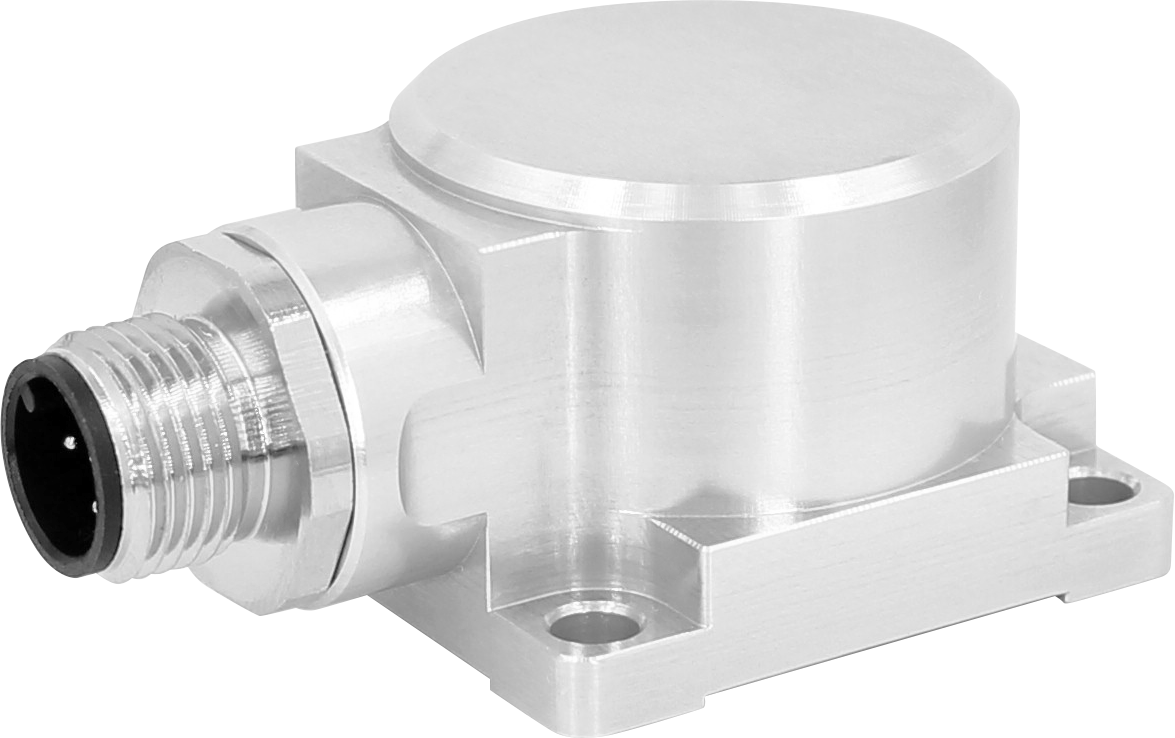

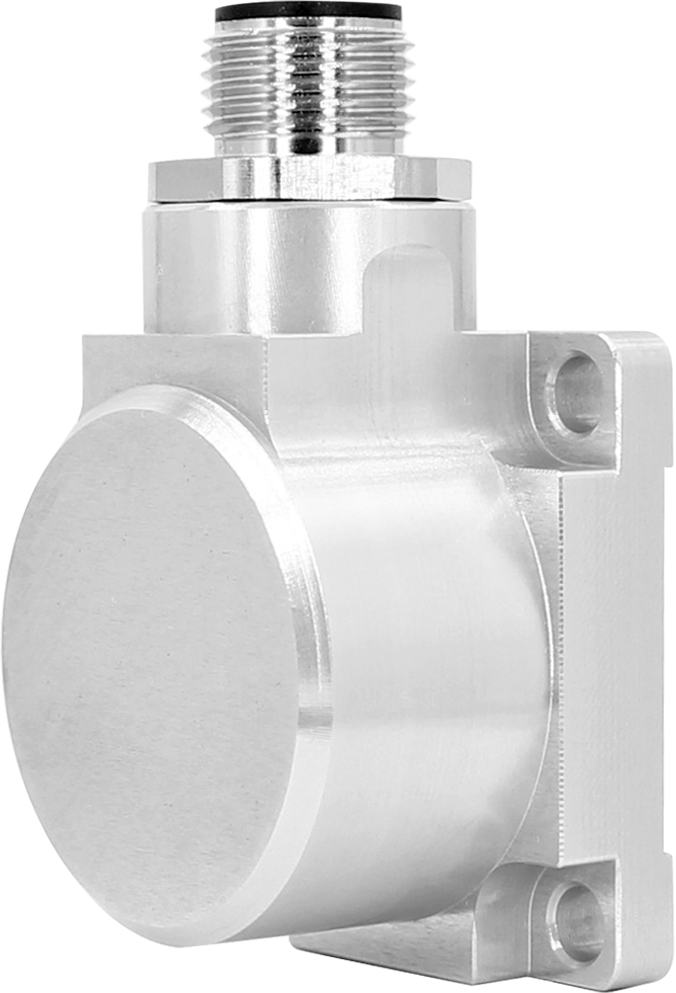

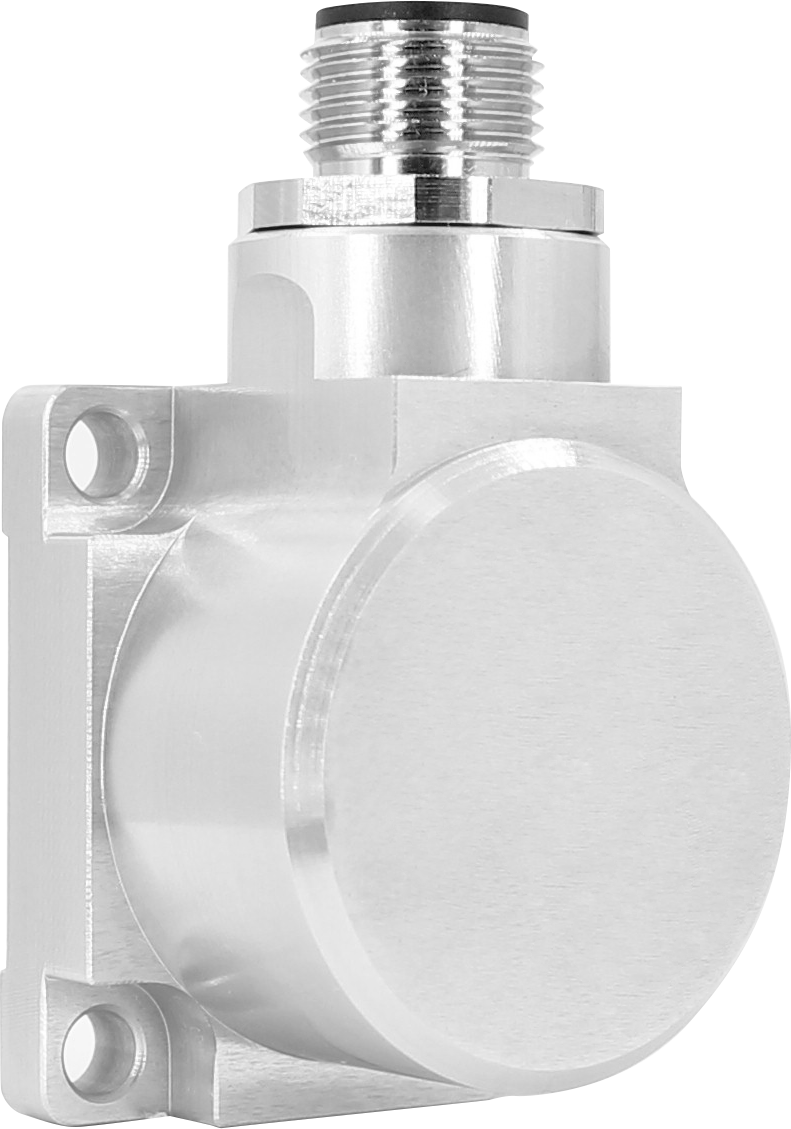

Accelerometer

GKM390

MEMS Voltage Type

Analog voltage output interface
Vibration: 10~2000Hz, 10g
Shock: 100g@11ms, triaxial (half-sine wave)
Excellent mechanical strength and long-term

Product Introduction

The GKM390 triaxial accelerometer is a high-performance sensor product independently developed by RUICOM Technology, widely used in vibration monitoring, shock testing, and other fields. This product adopts an analog voltage output mode, supports address encoding settings, and can achieve multi-device cascading networking, facilitating the construction of distributed measurement systems.

Based on single-crystal silicon MEMS capacitive sensing technology, the GKM390 integrates high-precision ASIC signal conditioning circuitry, an embedded temperature compensation module, and a non-volatile memory unit, featuring low power consumption and high stability. The product undergoes rigorous calibration, ensuring reliable structure and excellent output signal consistency. Its innovative circuit design provides solid-state reset functionality and a comprehensive overvoltage protection mechanism. With its robust mechanical structure, excellent zero-bias stability, and low power consumption, this series of products ensures accurate and reliable measurement data, meeting the stringent application requirements of industrial scenarios.

Performance Parameters

GKM390	Parameter						Unit
MeasurementRange	±2	±4	±8	±10	±20	±40	g
Bias Calibration	<1	<1	<1	<1	<1	<1	mg
Measurement Axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Upward/Power-Off Repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (±10%)	1250	625	312.5	250	125	62.5	mv/g
Bias Temperature Coefficient	0.01	0.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@1Hz)	<1	<1	<1	<1	<1	<1	mg(max)
Nonlinearity	<1	<1	<1	<1	<1	<1	%FS(max)
Response Frequency	500	500	500	500	500	500	Hz
Bandwidth (3dB)	1000	1000	1000	1000	1000	1000	Hz
Cross-Axis Sensitivity	1	1	1	2	2	2	%
Transverse Vibration Sensitivity Ratio	1	1	2	5	5	5	%
Resonant Frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Noise Density	21	21	21	86.6	86.6	86.6	μg/√Hz
0g Output 2.5V	<0.01	<0.01	<0.01	<0.008	<0.008	<0.008	mV
Output Voltage	0~5V
Input (VDD_VSS)	9-36 VDC
Operating Current Consumption	<60mA @ 12 VDC
Protection Class	IP67
Material	Aerospace Aluminum
Weight	Net Weight: ≤116g, Magnetic Base: ≤50g
Dimensions	Product Dimensions：L36×W32×H24mm Magnetic Base Dimensions：L36×W32×H8.1mm
Note: Do not use beyond the specified range for extended periods.

Product Dimensions
