GNS120 RTK GNSS Inertial Navigation System, Dual‑Antenna Heading Solution for Autonomous Vehicle & Mobile Mapping

Home Products IMU GNS120

Inertial Measurement

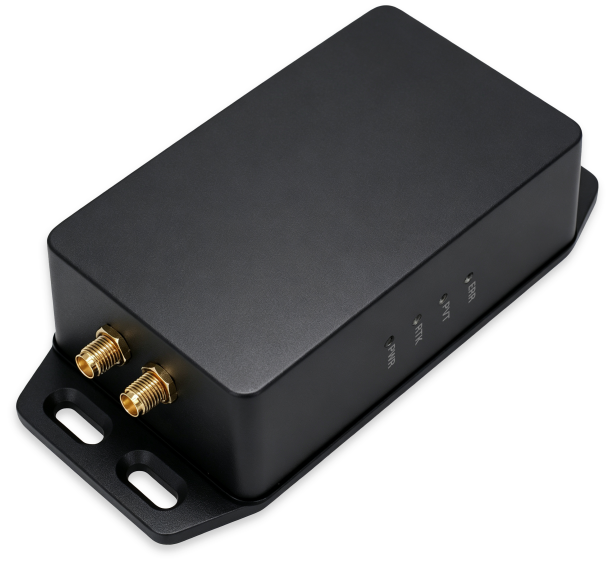

GNS120

RTK Dual-Antenna Combined Inertial Navigation

Horizontal azimuth and attitude angle output
Integrated navigation position/velocity output
Three-axis angular velocity/acceleration output
RS232 signal output
Compact and lightweight design
Long lifespan and high stability

Product manual

Product Introduction

The GNS120 integrated inertial navigation system, developed by RUICOM Technology, is based on a MEMS inertial measurement platform and integrates RTK dual-antenna positioning technology. By fusing angular rate information from the gyroscope and acceleration measurement data from the accelerometer, the system performs dynamic attitude calculations and can output the attitude angle, azimuth angle, velocity, position, and three-axis angular velocity and three-axis acceleration of the measured object in real time. The product incorporates RUICOM Technology's independently developed GNSS/inertial integrated navigation algorithm, employing a Kalman filter model to provide real-time feedback and compensation for system errors and IMU instrument errors, suppressing error accumulation and mitigating the effects of short-term gyroscope drift.

This product is primarily suitable for applications such as mobile satellite antenna equipment, vehicle guidance systems, and attitude and azimuth control of unmanned aerial vehicles (Model Flights).

Performance Parameters

GN1220(The navigation system defaults to:GPS+BDS)		Parameter
GNSSindex	Single-point positioning accuracy (RMS)1	Plane: 1.5m Elevation: 2.5m
	RTK positioning accuracy (RMS)1 2	Plane: 0.8cm + 1ppm Elevation: 1.5cm + 1ppm
	Dual-antenna orientation accuracy(RMS)	0.1°/1mbaseline
	PPS accuracy(RMS)	20 ns
	Velocity accuracy(RMS)	0.03m/s
	Update rate	5Hz
	GNSS initialization time	<30s
Inertial navigation index	Gyroscope range	±300°/s
	Gyroscope bias instability (Allan)	±300°/s
	Gyroscope random walk (Allan)	8.0deg/h
	Accelerometer range	0.1deg/√hr
	Accelerometer bias instability (Allan)	±8g
	Update rate	0.05mg
	Accelerometer random walk (Allan)	200hz
Integrated navigation system performance		Position accuracy	Roll accuracy	Pitch accuracy	Heading accuracy	Velocity accuracy
Position accuracy		(1σ)	(1σ)	(1σ)	(1σ)	(1σ)
Navigation lockout 0s		0.8cm	0.1°	0.1°	0.1°	0.03m/ S
Navigation lockout 60s		2.0‰	0.15°	0.15°	0.15°	0.1m/ S
Power supply voltage		9-36VDC
Operating current		250mA~300mA@12VDC
Interface		2×RS232/2×GNSSAntenna Interface
Dimensions		132×60×35mm
Weight		≤270g
1.The test results may deviate due to the influence of atmospheric conditions, baseline length, GNSS antenna type, multipath, number of visible satellites, and satellite geometry. 2. Measurements are conducted using a 1-kilometer baseline and a receiver with good antenna performance, disregarding potential antenna phase center offset errors. Note: After power-on, it will start up after being idle for 5 seconds.

Product Dimensions
