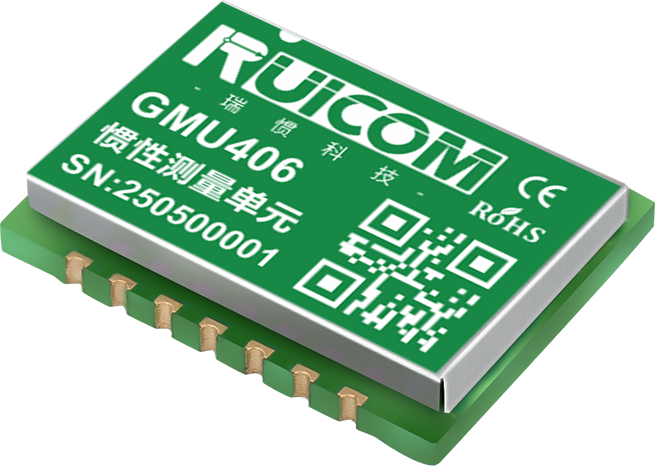

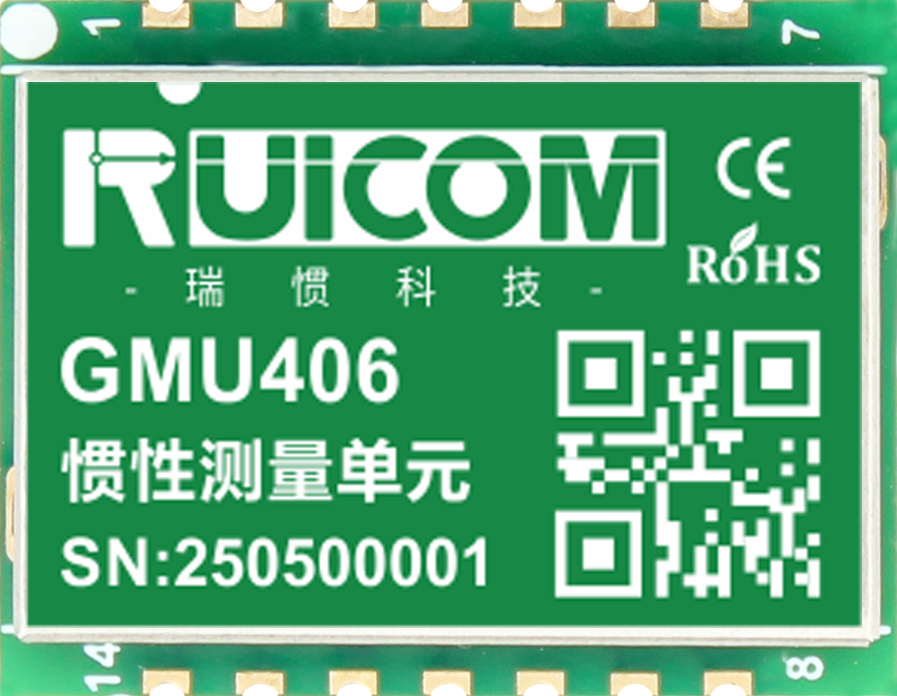

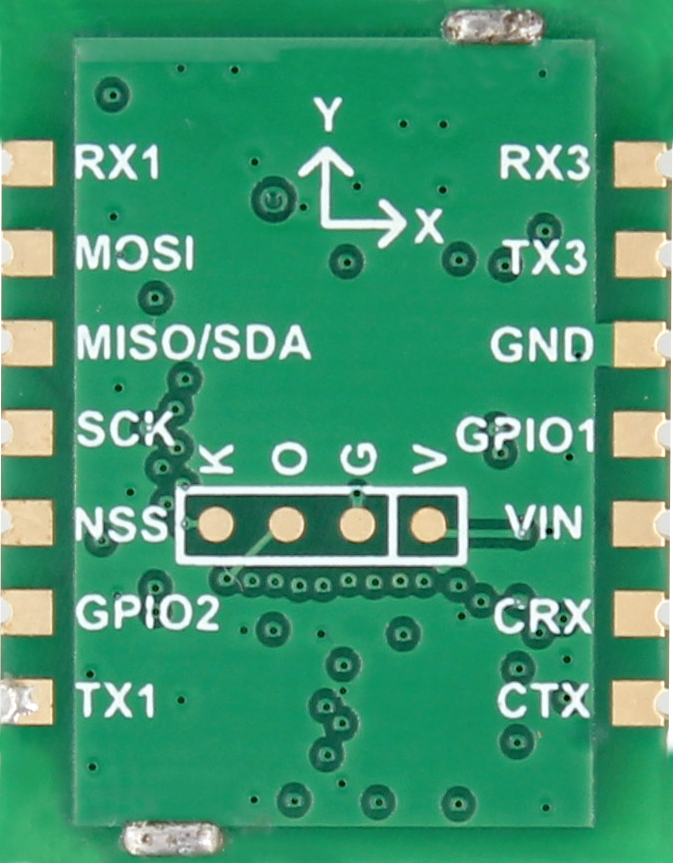

GMU406 Inertial Measurement Unit (IMU)

Home Products IMU GMU406 Inertial Measurement Unit (IMU)

Inertial Measurement

GMU406

IMU

Output of horizontal azimuth and attitude angles
Real-time angular rate output
Forward axis acceleration
3.3 VDC power supply
Compact size for easy integration

Product Introduction

The GMU406 is a high-performance inertial measurement unit (IMU) based on MEMS technology, designed specifically for precise platform attitude measurement and control. This device integrates an industrial-grade three-axis gyroscope and a three-axis accelerometer sensor, employing advanced dynamic attitude calculation algorithms to output high-precision attitude data in real time, including parameters such as three-dimensional attitude angles, heading angles, three-axis angular velocities, three-axis linear accelerations, and axial motion accelerations.

The product features excellent vibration suppression performance, maintaining stable attitude output even in complex vibration environments. A specially designed Z-axis angular velocity integration function provides accurate rotation angle counting output. As a core component of a new generation of intelligent attitude control systems, the GMU406 is widely used in automated control fields such as gimbal stabilization and precision operations, significantly improving system control accuracy and operational efficiency.

Performance parameters

GMU406		Parameter
3-axis attitude		Azimuth: ±180°, Roll: ±180°, Pitch: ±90°
Operation bandwidth		>100Hz
Resolution		0.01°
Non-linearity		0.1% of FS
3-axis gyroscope
3-axis gyroscope range		250°/s
Bias instability (Allan)		4.5°/h
Angular random walk coefficient (Allan)		0.25°/sqrt(h)
Bias stability (10s average)		8.5°/h
Gyro bias (@ -10℃ ~ +65℃)		±0.25°/s（RMS）
3-axis acceleration
Range		±4g
Resolution	Test condition @ 4g range	0.001g
Accuracy		1mg
Bias instability (Allan)		0.05mg
Velocity random walk coefficient (Allan)		0.015m/s/sqrt(h)
Bias stability (10s average)		0.15mg
Environmental Parameters
Start-up time		500ms
Input voltage		DC 3.3V (Ripple ＜ 50mVpp)
Current		60mA
Operating temperature		-40 ~ +80℃
Storage temperature		-40 ~ +85℃
Vibration		5g~10g
Shock		200g pk，2ms，½sine
Service life		10Years
Output rate		Configurable: 5Hz/15Hz/25Hz/35Hz/50Hz/100Hz
Output signal		3.3V-TTL
MTBF (Mean Time Between Failures)		MTBF: ≥98000 hours/ time
Shock resistance		Shock: 100g @ 11ms, 3-axis (half-sine wave)
Vibration resistance		10grms、10～1000Hz
Weight		≤15g（excluding cable）

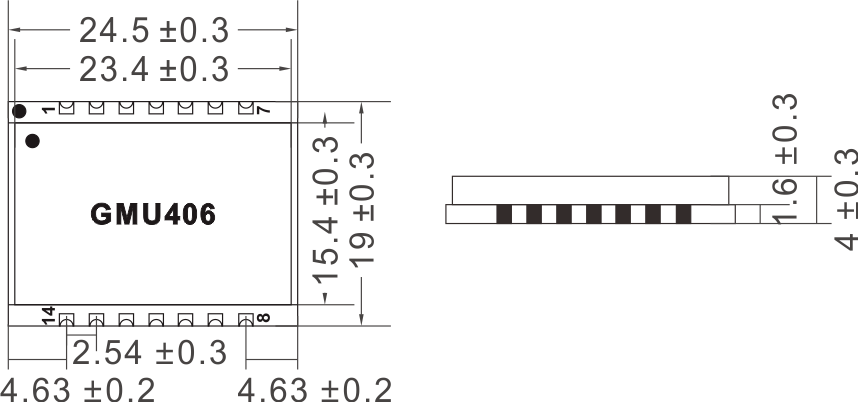

Product Dimensions
