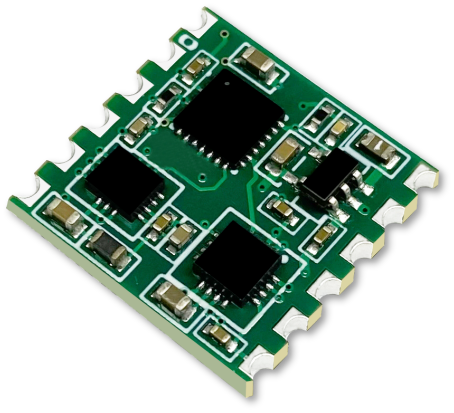

GMU080 9-Axis Attitude Sensor Module

Home Products IMU GMU080 9-Axis Attitude Sensor Module

IMU

GMU080

9-Axis Attitude Sensor Module

Supports dynamic attitude measurement
SCI serial communication
Automatic periodic transmission of attitude information
Professional calibration function with real-time transmission of calibration status

Product Introduction

The GMU080 nine-axis attitude reference system (AHRS) integrates a three-axis fluxgate sensor, a three-axis MEMS accelerometer, and a three-axis MEMS gyroscope to form a complete inertial measurement unit (IMU). This system achieves three-dimensional attitude calculation of the vehicle through multi-sensor data fusion. Its main functions include real-time heading, pitch, and roll angle measurement, dynamic attitude tracking, and outputting attitude parameters via a standard communication interface. The sensors are orthogonally configured; the fluxgate sensor provides geomagnetic field vector measurement, the accelerometer senses specific force information, and the gyroscope detects angular rate, collectively forming a high-precision attitude reference system.

Performance parameters

GMU080	Condition	Parameter
Roll & Pitch Measurement Range		Roll angle: ±180° Pitch angle: ±90°
Heading Accuracy Range		±180°
Roll & Pitch Latitude Range		Angles: 3-axis Angular velocity: 3-axis
Full-scale Dynamic Roll & Pitch Accuracy	Room temperature at 25℃	Better than 0.25°
Full-scale Dynamic Heading Accuracy	Room temperature at 25℃	Better than 2.5°
Output Frequency		1~100Hz
Data Interface	TTL level; baud rate: 4800~115200, 8 data bits, no parity, 1 stop bit
Dimensions	L15.3×W15.5×H2.8mm
Weight	≤5g

Product Dimensions
