GIM302

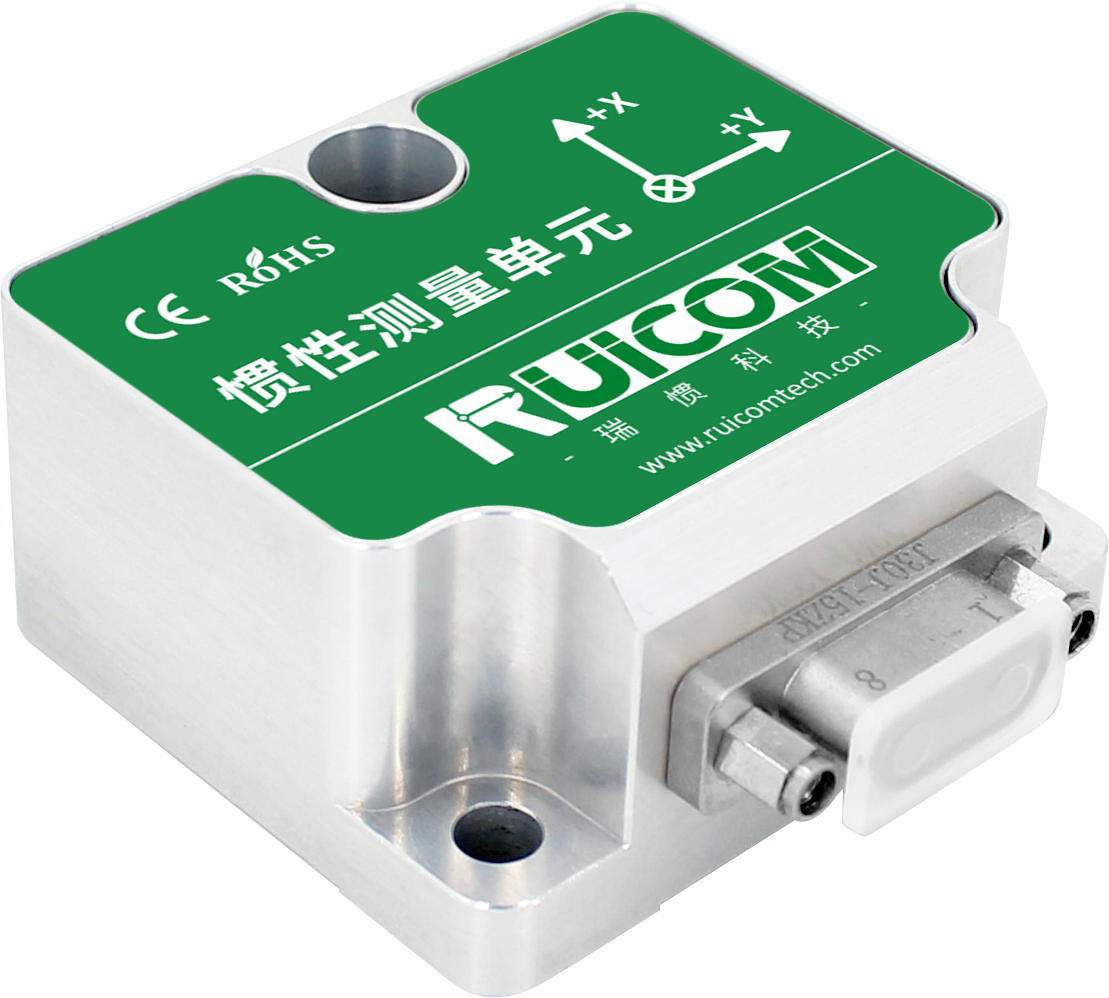

IMU Inertial Measurement Unit

Measures 3-axis angular rate of the carrier
Vibration: 10~2000Hz, 10g
Shock: 100g@11ms, three axial directions (half-sine wave)
Supply voltage: DC5.0V±0.5V

Product Introduction

The GIM302 inertial measurement unit consists of a three-axis gyroscope, a three-axis accelerometer, a temperature detection module, and data processing circuitry. It can monitor the three-dimensional angular velocity, three-dimensional linear acceleration, and spatial attitude information of a moving object in real time. Through an RS422/RS485 digital interface, it outputs complete inertial parameters after multi-dimensional error correction (including temperature drift compensation, assembly deviation correction, and nonlinear characteristic calibration) according to a predetermined communication protocol. The device employs a differential gyroscope design architecture, significantly reducing interference from linear acceleration and mechanical vibration. It also features wide-range temperature compensation, ensuring stable operation in harsh industrial environments.

Performance Parameters

Attitude Angle
Roll/Pitch 1σ (Dynamic)	0.25°
Roll/Pitch 1σ (Static)	0.05°
Gyroscope Specifications
Measurement Range	300°/s
Bias Instability (@Allan Variance)	≤1.2°/h
Angle Random Walk (@Allan Variance)	≤0.13°/√h
Resolution	≤0.01°/s
Scale Factor Nonlinearity	≤100ppm
Scale Factor Repeatability	≤100ppm
Cross-Coupling	≤0.1%
Bandwidth	≥80Hz
Accelerometer Specifications
Measurement Range	±6g
Bias Instability (@Allan Variance)	0.025mg
Bias Repeatability	0.08mg
Velocity Random Walk (@Allan Variance)	0.025m/s/√h
Full-Temp Bias Error	0.5mg
Other Parameters
Supply Voltage	DC5.0V±0.5V（Power supply ripple peak-to-peak value < 50mV）
Operating Current	105mA±5mA
Operating Temp	-40℃~85℃
Storage Temp	-40℃~85℃
Vibration	10~2000Hz，10g
Shock	100g@11ms, three-axis (half-sine wave)
Weight	≤ 60g (excluding cable)
Note: Roll/Yaw ±180°, Pitch ±90°.

Product Dimensions
