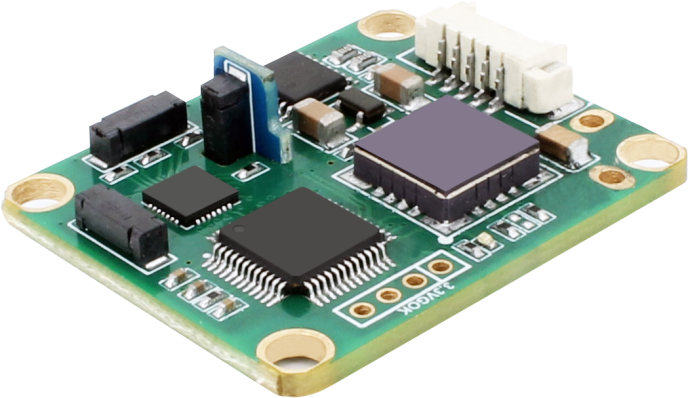

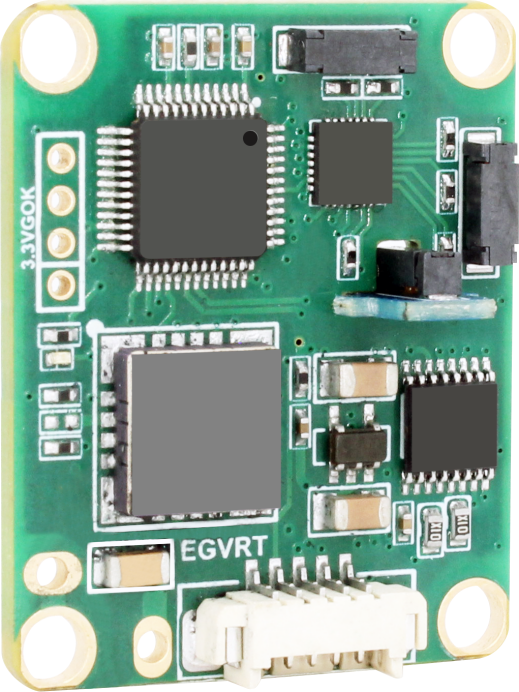

3D Electronic Compass

GCM387

3D Electronic Compass

Azimuth accuracy: 0.5°
Roll angle measurement range: <±180°
Tilt resolution:0.1°
Tilt accuracy:<0.2° (full range)

Product Introduction

The GCM387 is a high-performance, cost-effective 3D electronic compass. It employs innovative 24-point rotating acquisition and calibration technology, effectively enhancing anti-interference capabilities while simplifying operation. An integrated high-precision accelerometer supports full-range (±180°) tilt compensation, ensuring accurate heading data even under complex attitude conditions. It maintains stable measurement accuracy in environments with fixed magnetic field interference and supports flexible configuration via RS232/TTL dual-mode communication interfaces.

This product integrates a triaxial magnetometer and a triaxial accelerometer, featuring excellent resolution and strong noise suppression capabilities. It achieves low power consumption and high stability in a compact design. Suitable for handheld devices, mobile terminals, antenna stabilization, vehicle navigation, and system integration, it meets the diverse application needs for high-performance orientation measurement.

Performance parameters

GCM387		Parameter Indicators
Compass heading parameters	Optimal heading accuracy	0.5°
Compass heading parameters	Resolution	0.1°
Compass Tilt Parameters	Pitch accuracy	0.1°<15°(Measurement Range)
		0.1°<30°(Measurement Range)
		0.1°<60°(Measurement Range)
		0.2°<85°(Measurement Range)
	Pitch roll range	±85°
	Roll accuracy	0.1°<15°(Measurement Range)
		0.1°<30°(Measurement Range)
		0.1°<60°(Measurement Range)
		0.2°<180°(Measurement Range)
	Roll tilt range	±180°
	Resolution	0.1°
Compass Tilt Parameters	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	24-point rotation acquisition calibration
Interface Characteristics	Startup delay	<50ms
	Maximum output rate	20Hz/s
	Communication rate	2400to 115200baud
	Output format	Binary high-performance protocol
Power Supply	Supply voltage	Binary high-performance protocol
	Current (typical)	50mA
	Sleep mode	TBD
Environment	Operating temperature	-40℃～+85℃
	Storage temperature	-40℃～+85℃
	Vibration resistance	100g
Electromagnetic Compatibility	Compliant with EN61000 and GBT17626
Mean Time Between Failures (MTBF)	≥99000hours/time
Insulation Resistance	≥100megohms
Shock Resistance	100g@11ms, triaxial (half-sine wave)
Vibration Resistance	10grms、10～1000Hz
Product Dimensions	33×27×9.5mm
Weight	<15g

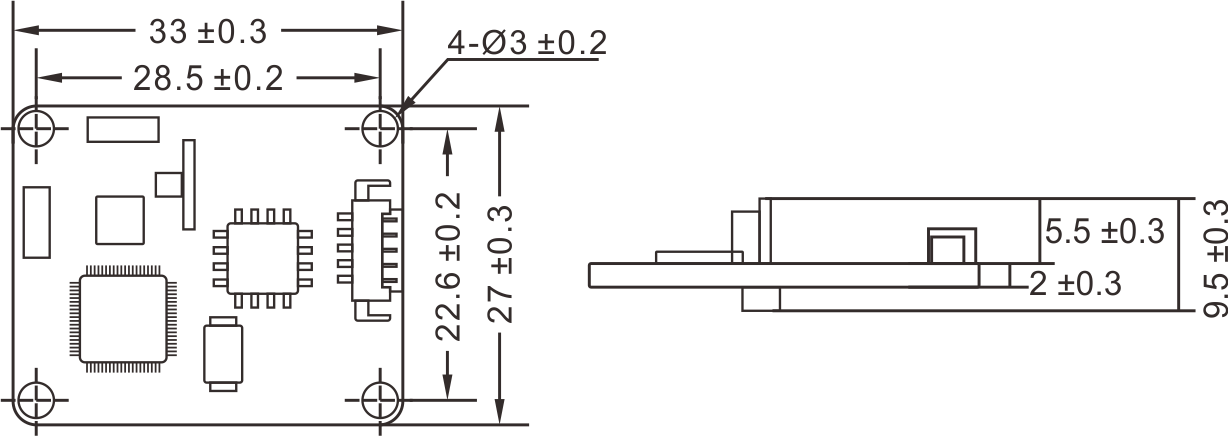

Product Size
