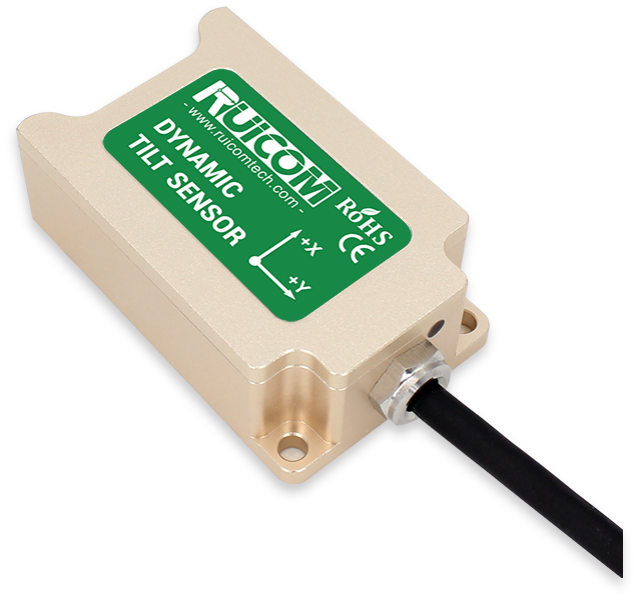

DTS6-A1是一款工业级动态倾角测量设备，采用电流输出方式，具备良好的抗振动性能，适用于对物体姿态进行稳定、可靠的动态角度监测。其输出信号为标准4～20mA电流环，可同时反映双轴动态姿态角，支持远距离传输，最远布线距离可达2000米。 产品内部集成三轴加速度计与三轴陀螺仪，通过测量重力场分量及陀螺角速率信息，配合内置六轴卡尔曼滤波算法，实时解算动态姿态角，并将角度数据转换为电流信号输出。该输出方式具有较强的抗干扰能力，适用于工程机械等现场环境较为复杂的工业应用场景。
核心敏感元件采用MEMS工艺制造，并在出厂前对温度漂移和非线性误差进行了系统补偿与修正。在小量程条件下，静态精度可达0.03°，能够满足一般工业测量对准确度的要求。产品结构紧凑，封装工艺可靠，具备较好的抗冲击与抗振动能力；内部电路设计注重射频干扰抑制与电磁兼容性，适用于非开挖型地下施工机械及其他具有相似工况条件的工业现场。
在可靠性与环境适应性方面，本产品选用工业级MCU、三防涂覆PCB板、耐候性进口电缆及宽温范围屏蔽金属壳体，从元器件选型、工艺处理到结构设计均以提升工业环境下的长期运行稳定性为目标，整体性能与同类产品相比具有可比较的优势。

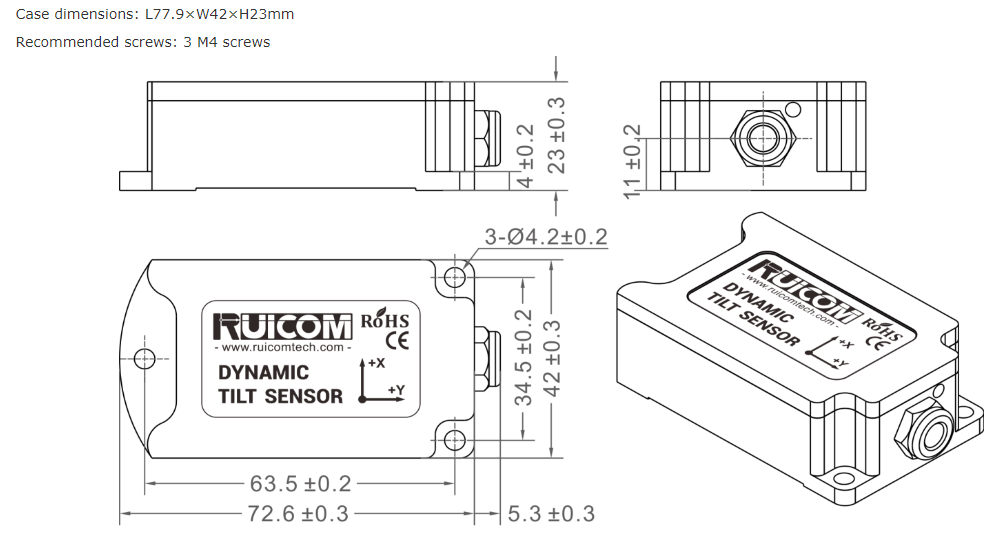

| DTS6-A1 | Condition | Parameters | Unit | ||||
| Range | ±10 | ±30 | ±60 | ±90 | ±180 | ° | |
| Measurement Axis | X Y | X Y | X Y | X Y | X | Axis | |
| Zero Output | 0° Output | 12 | 12 | 12 | 12 | 12 | mA |
| Resolution | 0.01 | 0.01 | 0.02 | 0.03 | 0.05 | ° | |
| Dynamic Accuracy | @25℃ | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | ° |
| Static Accuracy | @25℃ | 0.05 | 0.05 | 0.06 | 0.08 | 0.1 | ° |
| Long-Term Stability | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | ° | |
| Zero Temp. Coefficient | -40~85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
| Sensitivity Temp. Coefficient | -40~85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power-On Startup Time | 1 | 1 | 1 | 1 | 1 | S | |
| Response Time | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | s | |
| Response Frequency | 20~100 | 20~100 | 20~100 | 20~100 | 20~100 | Hz | |
| Electromagnetic Compatibility | Compliant with EN61000 and GBT17626 | ||||||
| Insulation Resistance | ≥100 megohms | ||||||
| Shock Resistance | 100g@11ms, triaxial (half-sine wave) | ||||||
| Vibration Resistance | 10grms /10~1000Hz | ||||||
| Waterproof Rating | IP67 | ||||||
| Cable | Standard 2-meter shielded cable | ||||||
| Weight | ≤180g(excluding cable) | ||||||
|
Resolution: The smallest change in the measured quantity that the sensor can detect and distinguish within its measurement range. Measurement Accuracy: The combined error of the sensor under normal temperature conditions, including linearity, repeatability, hysteresis, zero-point deviation, and horizontal axis error. Long-term Stability: The deviation between the maximum and minimum values of the sensor after one year of long-term operation under normal temperature conditions. Response Time: The time required for the sensor output to reach the standard value after a single angular change. |
|||||||
