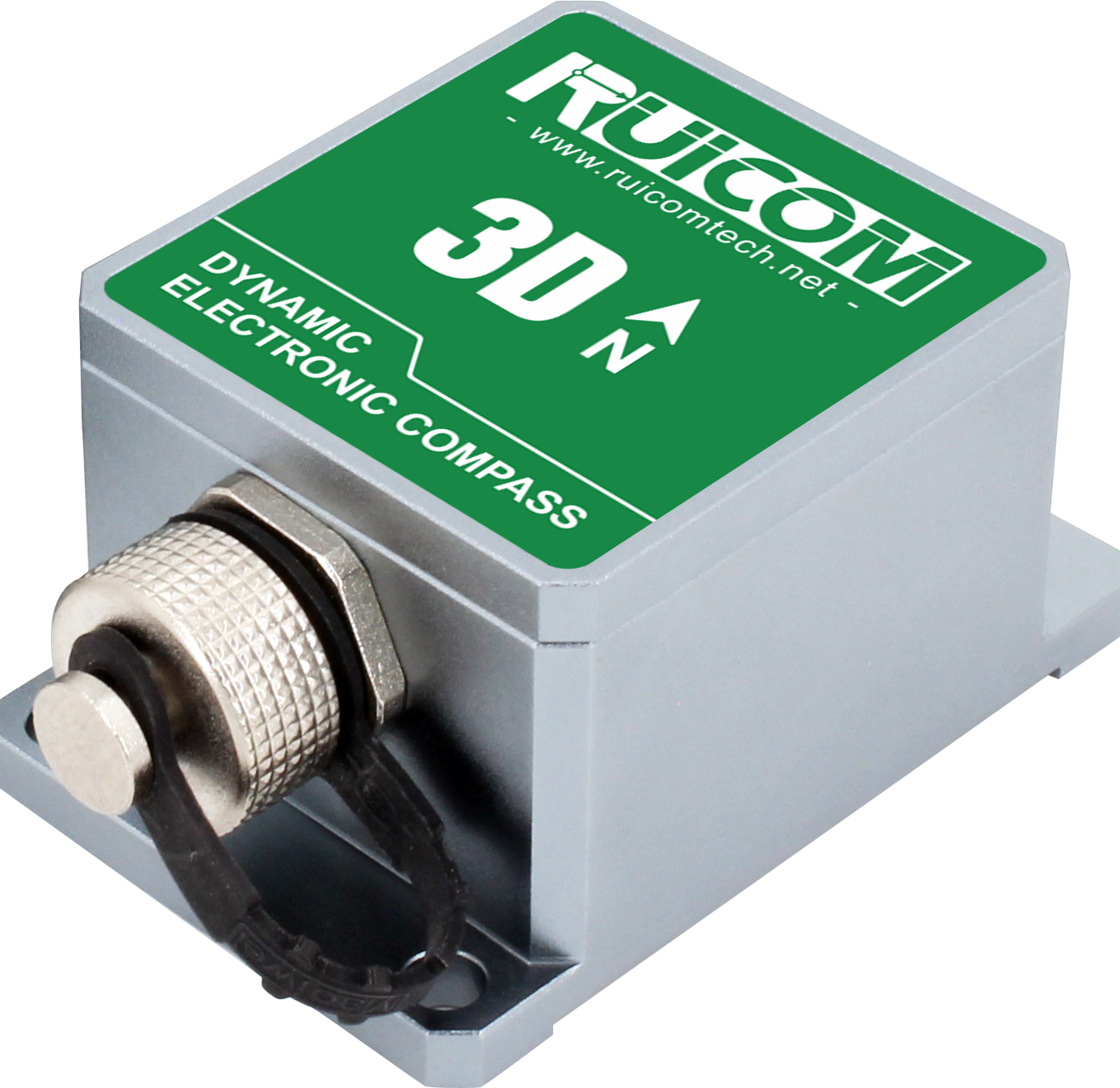

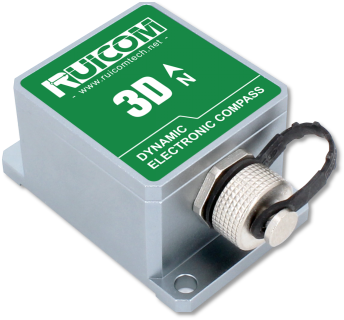

GDM350 / GDM360 Dynamic 3D Electronic Compass

Home Products 3D Electronic Compass Sensor GDM350 / GDM360 Dynamic 3D Electronic Compass

3D Electronic Compass

GDM350 / GDM360

Dynamic 3D Electronic

Tilt resolution: 0.1°
Tatic tilt accuracy: <0.2°
Dynamic accuracy:<0.5°

Product Introduction

The GDM350 / 360 is a high-performance 3D dynamic electronic compass with a built-in 9-axis inertial measurement unit (IMU), integrating a three-axis accelerometer, a three-axis gyroscope, and a three-axis magnetometer. By combining the high dynamic angle measurement capability of the gyroscope with the high stability attitude detection characteristics of the accelerometer, and using advanced dynamic inertial navigation algorithms, it can calculate pitch and roll angles in real time under complex motion conditions. This product employs hard and soft magnetic intelligent calibration technology, which can effectively suppress environmental magnetic field interference and improve the measurement accuracy of geomagnetic azimuth. The central processing unit calculates heading data in real time and performs full-range magnetic azimuth compensation based on dynamic pitch and roll angles, maintaining reliable heading output even under large tilt angles of ±85°.

The electronic compass is equipped with a high-performance DSP processor and supports standard communication interfaces such as RS232/RS485/TTL. Other communication protocols can also be customized according to requirements. Its compact design combines low power consumption characteristics and is suitable for high-precision measurement and integrated control scenarios such as ship navigation, antenna stability control, and model systems. It performs stably under strong vibration and harsh environmental conditions.

Performance Parameters

GDM350B/360B		Parameter Indicators
Compass heading parameters	Heading accuracy	0.8°
	Resolution	0.1°
	Pitch measurement range	±90°
	Roll measurement range	±180°
	Tilt accuracy	Static0.2°
	Tilt accuracy	Dynamic 0.5°
	Resolution	0.1°
	Tilt compensation angle range	Roll ±180°
	Tilt compensation angle range	Pitch＜85°
Gyroscope	Range	500°/s
Accelerometer	Range	4g
Calibration	Hard iron calibration	Yes
	Soft iron calibration	Yes
	Magnetic field interference calibration method	One full rotation (2D calibration)
Physical characteristics	Dimensions	Shell:L55×W37×H24mm
	Dimensions	PCBA :L33×W27×H9.7mm
	RS232/RS485/TTLinterface connector	Aerospace connector
	RS232/RS485/TTLinterface connector	Board connection cable: 4PIN 30cm terminal wire
Interface characteristics	Startup delay	<50ms
	Output rate	5~100Hz(configurable)
	Baud rate	4800 to 115200baud
	Output format	Binary high-performance protocol
Power supply	Supply voltage	(Default) DC +5V
	Supply voltage	(Custom) DC 9~36V
	Current (MAX)	45mA
	Ideal mode	35mA
	Sleep mode	TBD
Environment	Operating range	-40℃~+85℃
	Storage temperature	-40℃~+85℃
	Vibration resistance	2500g
Electromagnetic compatibility	Complies with EN61000 and GBT17626
MTBF	≥98000hours / time
Insulationresistance	≥100megohms
Shock resistance	100g@11ms, triaxial (half-sine wave)
Vibration resistance	10grms/10~1000Hz
Weight	PCBA: ≤25g Shell: ≤135g (excluding cable)

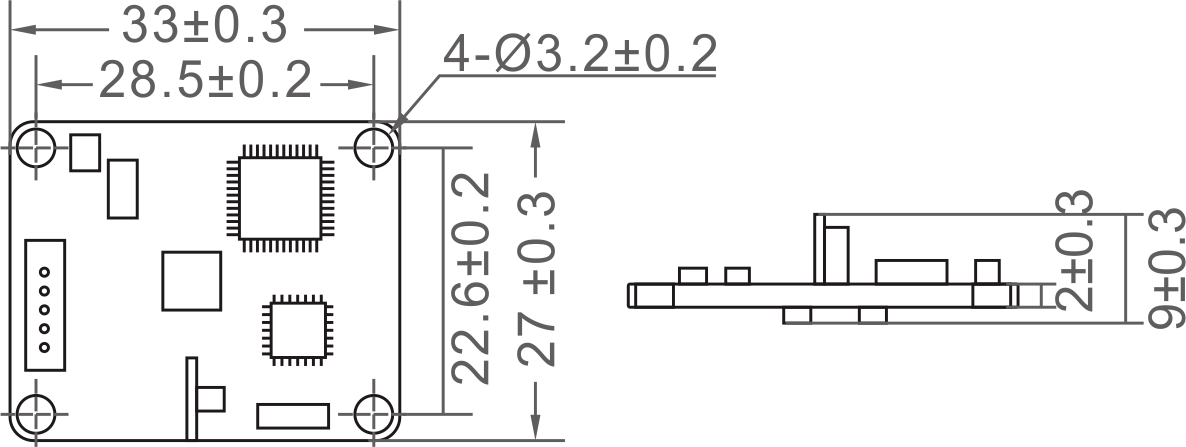

Product Size
