WTS6X Single-Axis Tilt Sensor | High Accuracy, Industrial

Home Products Tilt sensor WTS6X

Inclination Sensor

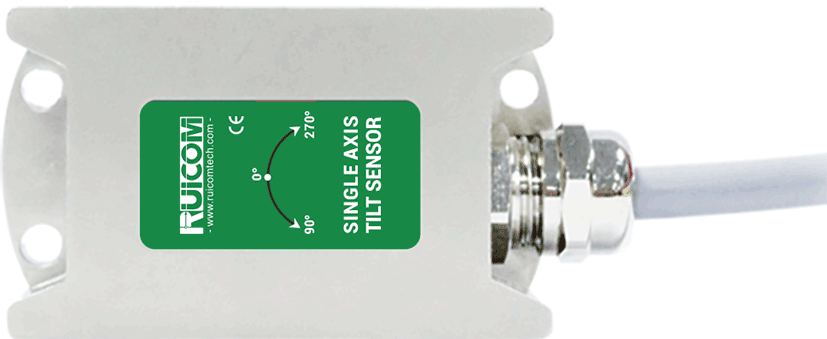

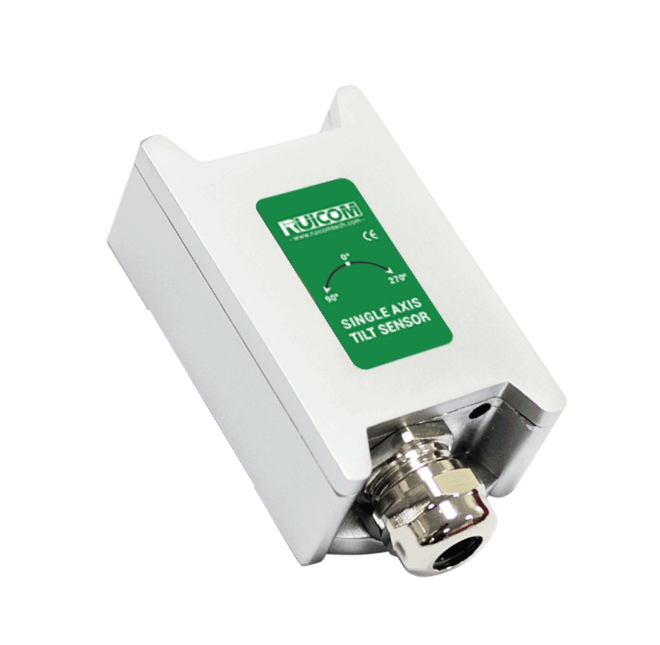

WTS6X

Single-Axis Tilt Sensor

Output interface: RS485
Resolution: 0.1°
Output surge protection
Operating voltage: DC 9–36V
Input overvoltage and overcurrent protection

Product manual

Product Introduction

The WTS6X single-axis tilt sensor is a cost-effective tilt-measurement solution developed independently by Ruicom Technology. It features a next-generation, interference-resistant hardware platform and an integrated capacitive MEMS sensing unit. The device offers exceptional performance across a wide temperature range, superior vibration resistance, and long-term operational reliability, with a design service life of up to 10 years.

Utilizing a non-contact, gravity-based measurement principle, the WTS6X employs its internal capacitive MEMS unit to detect components of the Earth's gravitational field, calculating the tilt angle of the target object in real time. Installation is straightforward: the sensor is simply mounted onto the surface of the equipment. It requires no rotating shafts or mechanical linkages, making it free from the constraints typically associated with mechanical moving parts.

Designed for demanding industrial environments, the WTS6X delivers stable performance. It is an ideal choice for attitude monitoring in construction machinery, agricultural equipment, and industrial automation systems, providing a highly cost-effective single-axis tilt-sensing solution for a wide range of industrial applications.

Performance Parameters

WTS6X Single Axis	Condition	Parameters	Unit
Measurement Range	Single Axis	0～360°	°
Resolution	-	0.1	°
Accuracy	25℃	±0.2	°
Temperature Drift	-40～+85℃	±0.003	°/℃
Response Time	No filtering	0.1	s
Operating Temperature	-40℃~85℃
Output Interface	RS485(MODBUS Protocol)
Output Load	>500Ω
Operating Duration	50,000 hours/cycle (failure-free)
Insulation Resistance	＞100MΩ
Vibration Resistance	10grms、10~1000Hz
Shock Resistance	100g @ 11ms, three-axis (half-sine wave)
Weight	≤200g

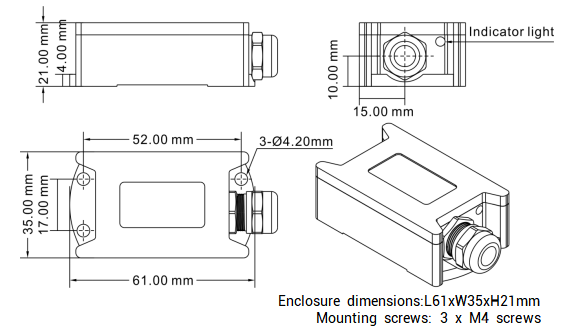

Product Dimensions
