WTS3X Single-Axis Tilt Sensor Module

Home Products Tilt sensor WTS3X

Inclination Sensor

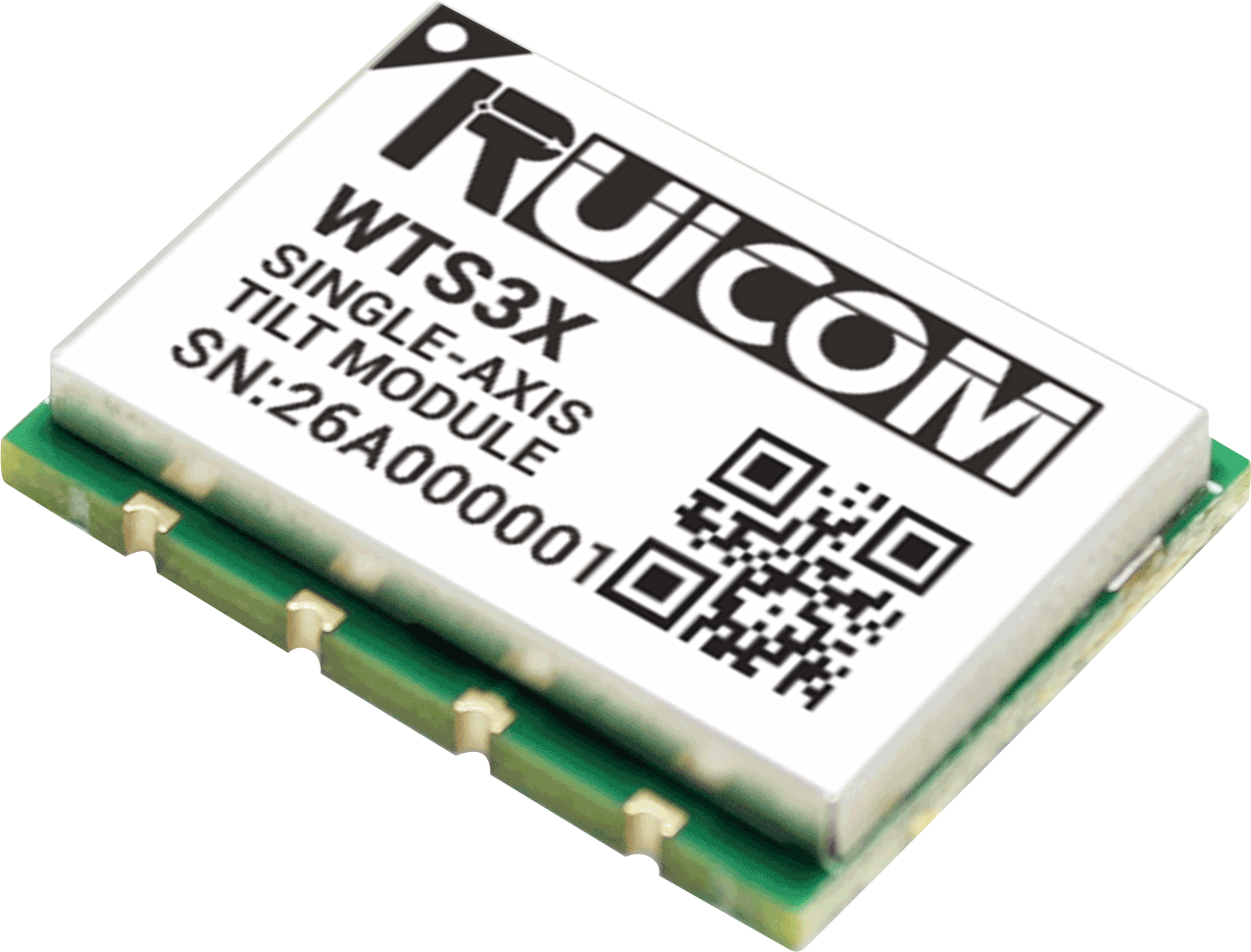

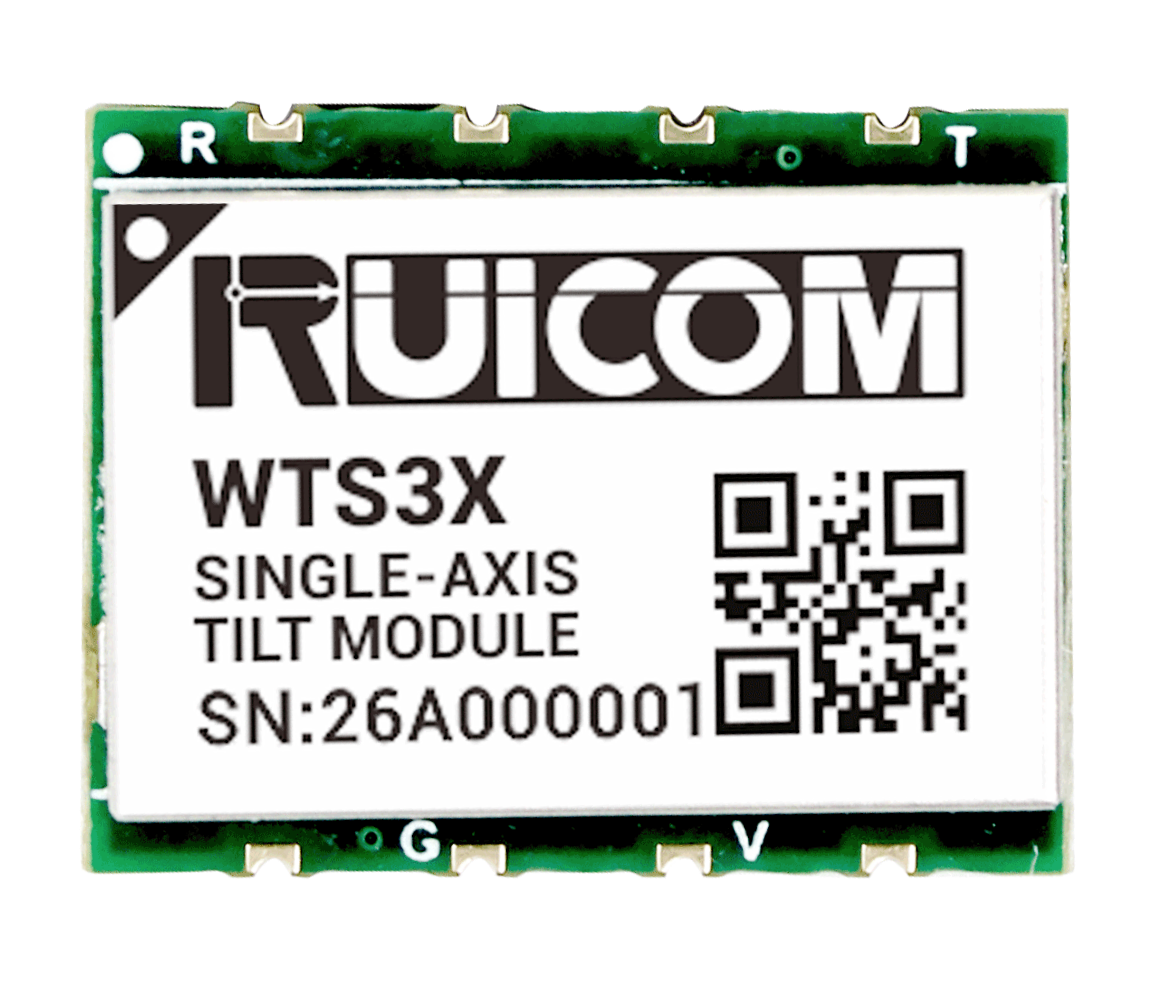

WTS3X

Single-Axis Tilt Module

Resolution: 0.1°
Output format: TTL
Operating voltage: DC 3.3–7V
High vibration resistance: >100g
Excellent performance across the full temperature range

Product manual

Product Introduction

The WTS3X single-axis Tilt module is a new-generation, low-cost MEMS inclination sensing module developed independently by Ruicom Technology. Built on an advanced, interference-resistant hardware platform and featuring a high-performance micro-electromechanical sensing unit, the module offers excellent performance across a wide temperature range and robust vibration resistance. It ensures stable, reliable long-term operation, with a design service life of up to 10 years.

Each WTS3X module undergoes systematic, high-precision calibration before leaving the factory. This process effectively compensates for zero-bias, cross-axis, and linearity errors, ensuring consistent measurement performance across batches and reducing the need for additional calibration by the customer. Optimized for mass production, the module is designed for automated SMT (Surface Mount Technology) assembly—eliminating the need for manual soldering—thereby significantly boosting production line efficiency and lowering overall system integration costs.

With its compact design, the module is easily integrated onto PCBs, making it ideal for space-constrained inclination-sensing applications. Thanks to its stable measurement accuracy and exceptional environmental adaptability, the WTS3X is well-suited for a variety of uses, including small-scale industrial equipment, attitude monitoring, platform leveling, and intelligent machinery—providing customers with a highly reliable, cost-effective single-axis inclination sensing solution.

Performance Parameters

WTS3XSingle Axis	Condition	Parameter	Unit
Measurement Range	Single Axis	0～360°	°
Resolution	-	0.1	°
Accuracy	25℃	±0.2	°
Temperature Drift	-40～+85℃	±0.02	°/℃
Response Time	No filtering	0.1	s
Zero Offset	-	±0.1	°
Quiescent Current	DC 5V	10	mA
Power-on Startup Time	1s
Operating Voltage	DC 5V(Recommendation Score)
Operating Temperature	-40℃~85℃
Output Interface	3.3V TTL
Output Load	>500Ω
Operating Duration	50,000 hours/cycles (mean time between failures)
Vibration Resistance	10 grms, 10–1000 Hz
Shock Resistance	100 g @ 11 ms, three axes (half-sine wave)
Weight	≤5g
Available in horizontal (WTS3X) or vertical (WTS3X-V) mounting configurations

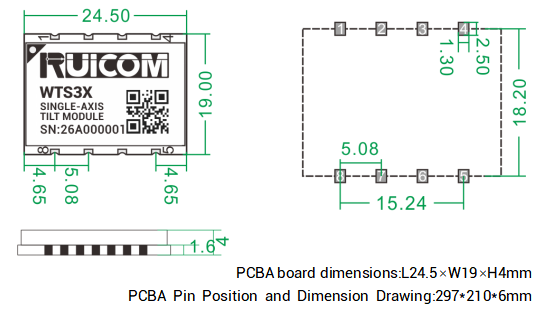

Product Dimensions
