WTS3D Dual-Axis Tilt Sensor Module

Home Products Tilt sensor WTS3D

Inclination Sensor

WTS3D

Dual-Axis Tilt Module

Wide measurement range
TTL output
0.1° resolution
Operating voltage: DC 3.3–7V
High vibration resistance (>100g)

Product manual

Product Introduction

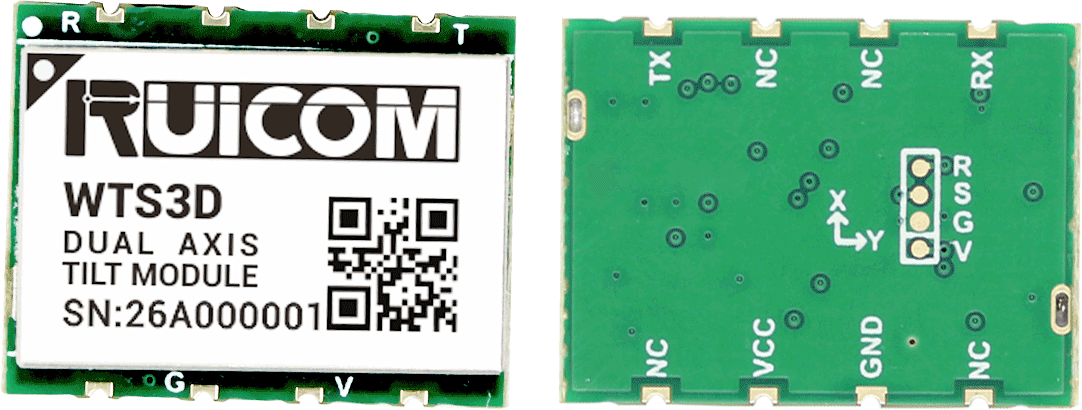

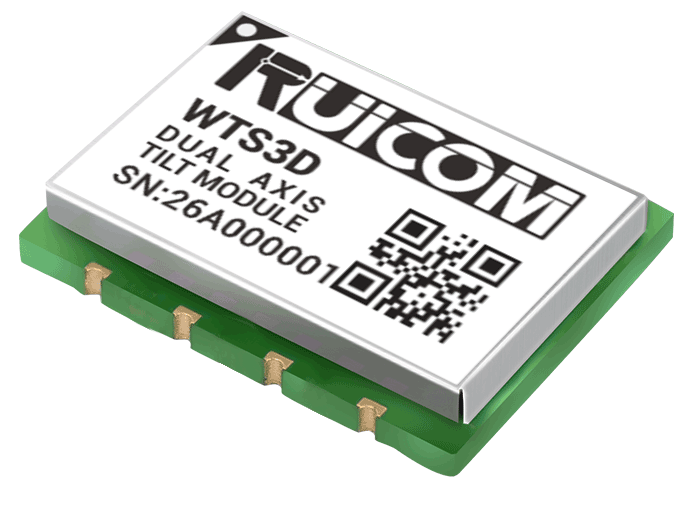

The WTS3D dual-axis tilt module is a cost-effective, dual-axis tilt-sensing solution developed in-house by Ruicom. It utilizes a proprietary, interference-resistant hardware platform integrated with MEMS (micro-electromechanical system) sensing units. The module offers excellent performance across a wide temperature range, superior vibration resistance, and long-term operational stability, with a design lifespan of up to 10 years. Each unit undergoes comprehensive, high-precision factory calibration to effectively eliminate zero-bias, cross-axis, and linearity errors.

Supplied in standard tape-and-reel packaging, the module is designed for automated SMT (surface-mount technology) assembly, facilitating high-volume production and integration while balancing performance and cost. It enables simultaneous dual-axis tilt signal acquisition, making it well-suited for a variety of onboard attitude-monitoring applications.

Performance Parameters

WTS3D Dual Axis	Condition	Parameter	Unit
Measurement Range	Dual Axis	±90°	°
Resolution	-	0.1	°
Accuracy	25℃	±0.2	°
Temperature Drift	-40～+85℃	±0.02	°/℃
Response Time	No filtering	0.1	s
Zero Offset	-	±0.1	°
Quiescent Current	DC 5V	10	mA
Power-on Startup Time	1s
Operating Voltage	DC 5V(Recommendation Score)
Operating Temperature	-40℃~85℃
Output Interface	3.3V TTL
Output Load	>500Ω
Operating Duration	50,000 hours/cycles (mean time between failures)
Vibration Resistance	10 grms, 10–1000 Hz
Shock Resistance	100 g @ 11 ms, three axes (half-sine wave)
Weight	≤5g

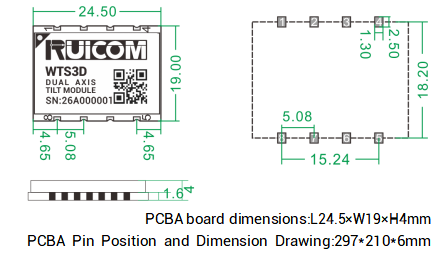

Product Dimensions
