NTS6 Voltage Output Tilt Sensor, Analog Voltage Industrial Inclinometer

Home Products Tilt sensor NTS6

Inclination Sensor

NTS6

Current Output Tilt Sensor

Output: 0-5V
Accuracy: 0.1°
Resolution: 0.02°
High vibration resistance: >3500g
Measuring range: ±10°to ±90° selectable

Product manual

Product Introduction

The NTS6 series is a small-size, low-cost single-axis tilt sensor launched by Ruicom. Its output voltage, after internal double linearity correction, exhibits excellent linearity, primarily targeting applications with high requirements for installation space and cost. This product integrates a novel tilt-sensing unit based on microelectromechanical systems (MEMS), featuring compact size and low power consumption. MEMS technology also ensures good consistency and stability. The operating temperature range covers industrial-grade -40℃ to +85℃, making it a cost-effective tilt module.

This product uses a non-contact measurement principle, providing real-time output of the current tilt angle. It is easy to use, eliminating the need to locate two relatively changing surfaces for installation. Its compact size and strong resistance to external electromagnetic interference and shock vibration make it suitable for industrial equipment, platform attitude measurement, and other applications. It is suitable for both static and slowly changing dynamic angle measurements, exhibiting outstanding electromagnetic interference resistance and capable of long-term stable operation in harsh industrial environments.

Performance Parameters

NTS6	Condition	Parameter				Unit
Measurement Range		±30	±60	±90	0~360	°
Measurement Axis		XY	XY	XY	X	Axis
Zero Output	0° output	2.5	2.5	2.5	2.5	V
Resolution		0.02	0.03	0.05	0.08	°
Measurement Accuracy	@25℃	0.1	0.1	0.15	0.2	°
Long-Term Stability		<0.5	<0.5	<0.5	<0.5	°
Zero TempCoefficient	-40～85℃	±0.02	±0.02	±0.02	±0.02	°/℃
Sensitivity TempCoefficient	-40～85℃	≤150	≤150	≤150	≤150	ppm/℃
Power-On Startup Time		0.5	0.5	0.5	0.5	S
Response Frequency		20	20	20	20	Hz
Electromagnetic Compatibility	Compliant with EN61000 and GBT17626
Insulation Resistance	≥100megohms
Shock Resistance	100g@11ms, triaxial (half-sine wave)
Vibration Resistance	10grms、10～1000Hz
Waterproof Rating	IP67
Cable	Standard config: 2m shielded cable, weight ≤123g
Weight	≤112g

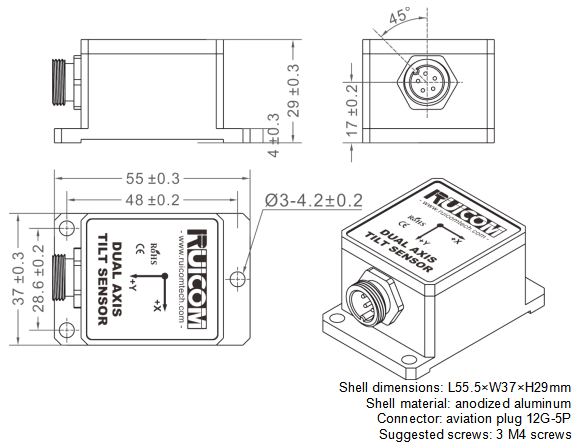

Product Dimensions
