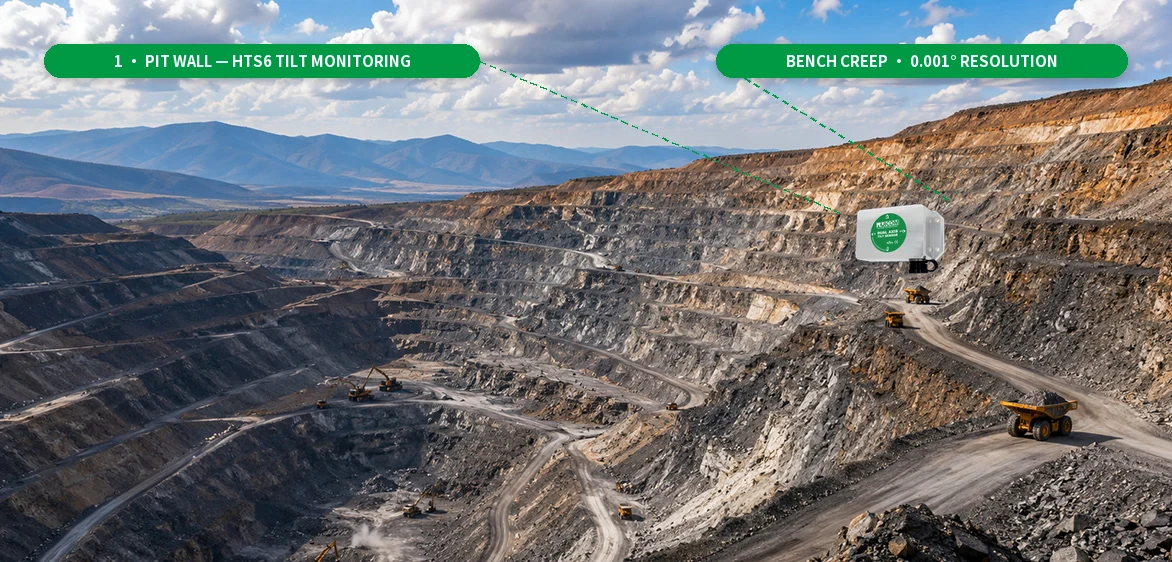

Open-pit walls and waste dumps fail the same way natural slopes do — slowly, then suddenly — while underground, roof and pillar convergence develops quietly after every blast. The HTS6 high-precision tilt sensor watches that rotation continuously at 0.001° resolution, through dust, blasting shock and a −40~+85 ℃ swing, so movement is caught while evacuation and re-profiling are still options.

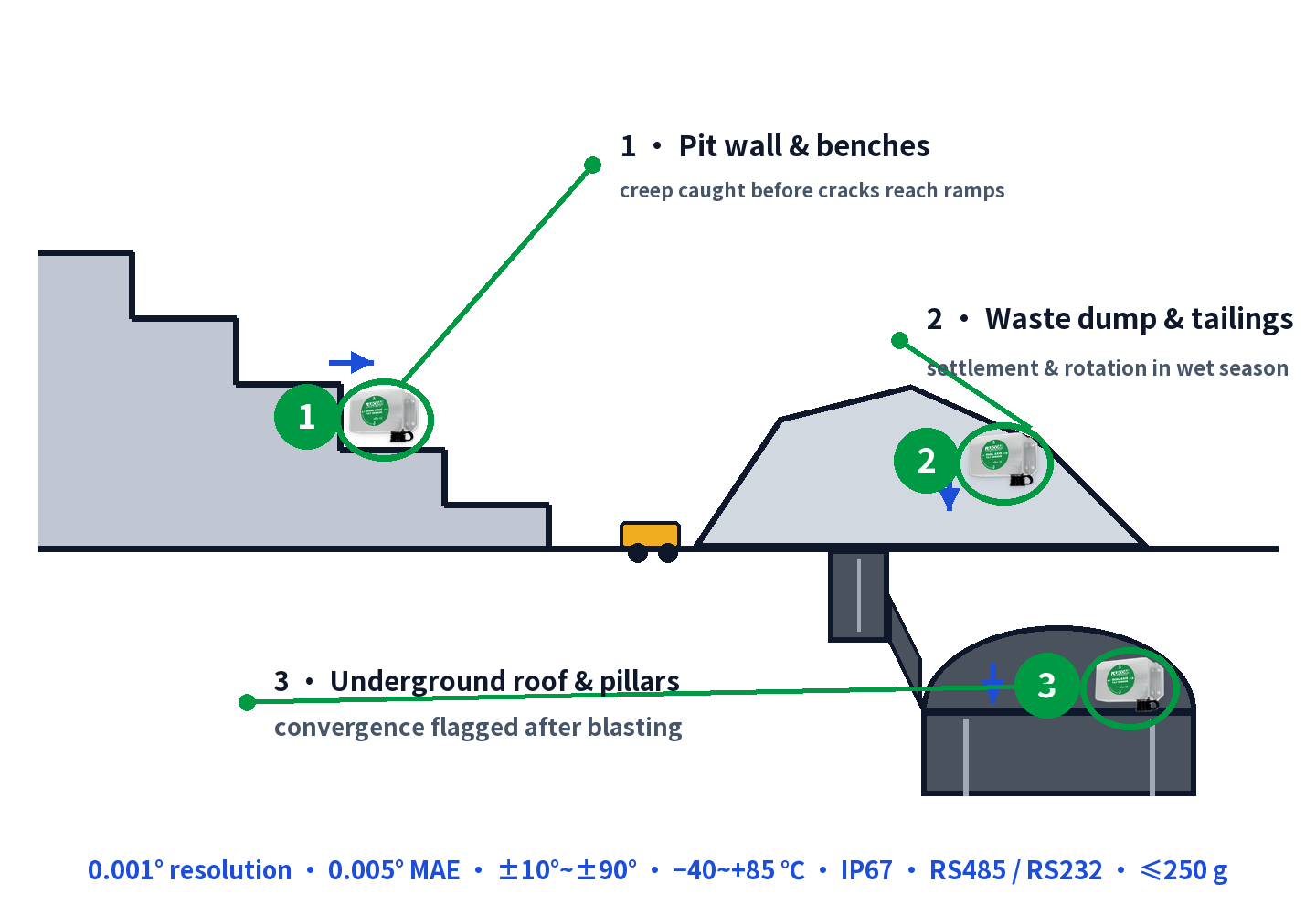

Open-pit benches, dump slopes and underground openings all give the same late warning by eye: cracks, bulges and spalling appear only a short time before failure. HTS6 tilt sensors installed on bench crests, dump slopes, portals and pillars measure ground rotation continuously — separating slow creep from post-blast movement — so the acceleration phase is detected early and adds valuable time to warning and evacuation.
Ruicom HTS6 · pit wall, waste dump & underground roadwayHigh-precision dual-axis MEMS tilt sensor built for unattended geotechnical monitoring — 0.001° resolution with MAE 0.005° in the small range, 0.0005 °/℃ zero drift, wide 9–36 V supply and IP67 sealing for buried or exposed installation.
