Power Tower Safety Tilt Monitoring

Monitoring of safety tilt of power tower

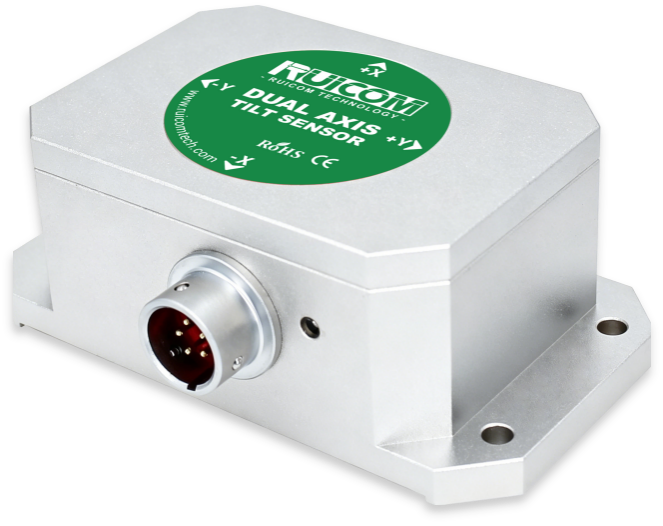

A transmission tower leans for a living: slope creep, foundation scour, uneven ice shedding, gale-force wind and seismic events all end in degrees. The HTS6 dual-axis tilt sensor watches those degrees continuously — so a few tenths of drift in terrain or structure reaches the control room long before the tower itself shows it.

0.001° resolution

0.0005 °/℃ zero drift · −40~+85 ℃

IP67 · RS485 to SCADA

Why tower tilt is a slow signal worth watching

Tower tilt rarely happens all at once. Foundation scour, slope movement and frozen-ground heave walk a tower a few hundredths of a degree at a time — invisible to routine patrol and below the noise floor of coarse tilt switches. The HTS6 resolves 0.001° with a factory-compensated zero drift of just 0.0005 °/℃ across −40 to +85 ℃, so seasonal thermal swing never masquerades as structural movement. And when a gale, a wet-snow ice load or a seismic event does strike, the same stream gives the dispatcher an immediate, quantified lean value to trigger patrol, de-icing or load-shedding — before a second event decides for everyone.

Typical use cases

Four signals between the tower and the grid

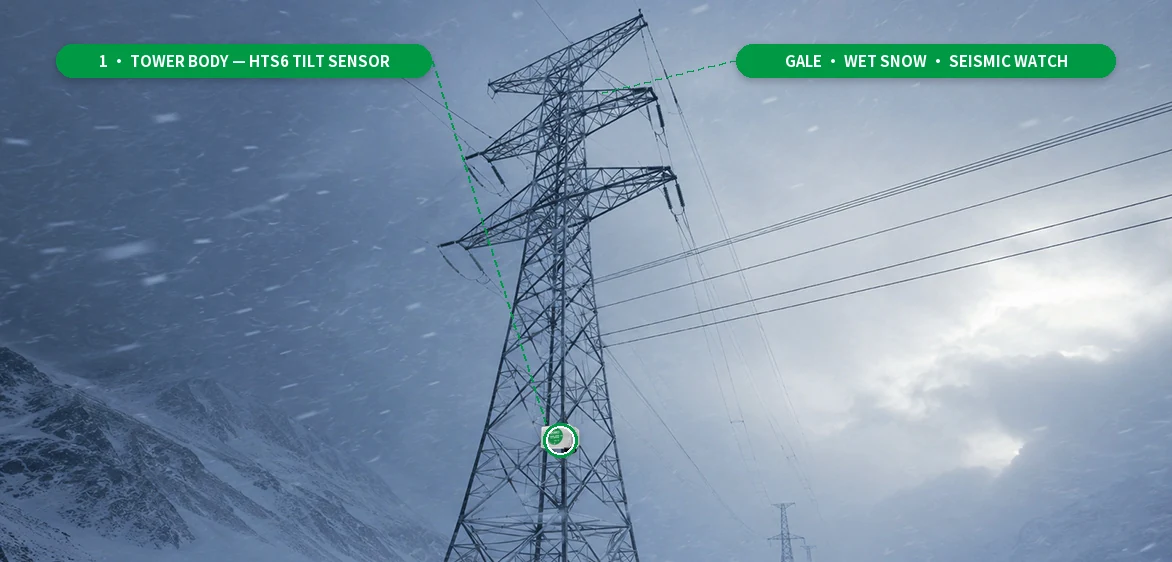

Extreme-weather safety watch — gales, wet-snow ice load and seismic events all end in lean; real-time tilt tells the dispatcher whether a tower took the hit and whether the line may stay energized.
Slow geohazard tracking — slope creep, frozen-ground heave and foundation scour show up as steady drift against the sensor's stable zero reference.
Ice-load event assessment — uneven conductor ice shedding unloads the cross-arms first; the tilt step quantifies residual asymmetry and guides de-icing priority.

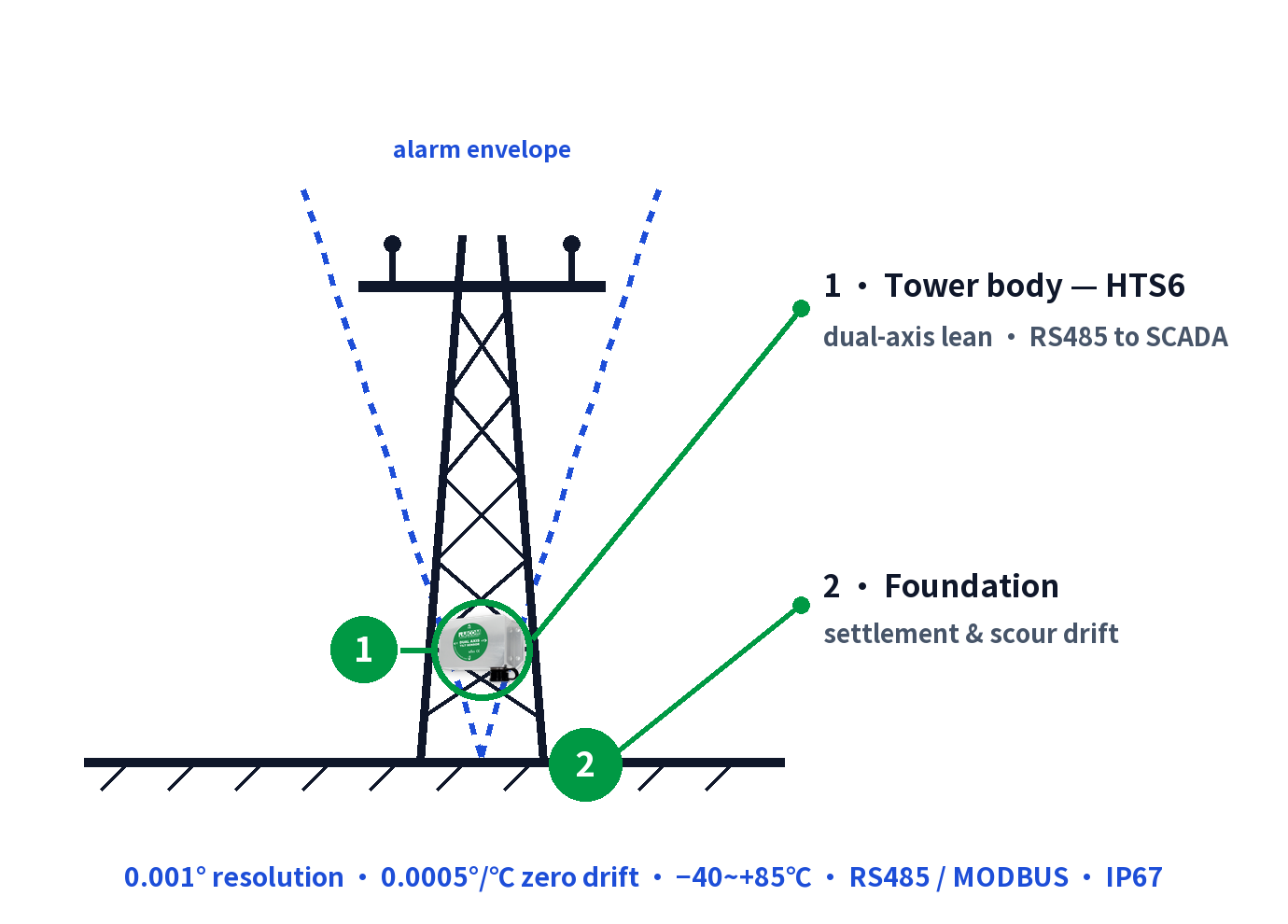

Line-wide condition baseline — bracket-mounted on the tower body, each HTS6 reports over RS485 (MODBUS), so alarm thresholds are set in degrees against the tower's rated envelope, not in guesses.
