BDS450 Bluetooth Dynamic Attitude Sensor for Wind Turbine Tower Vibration Monitoring

Home Products Dynamic Tilt Sensor BDS450

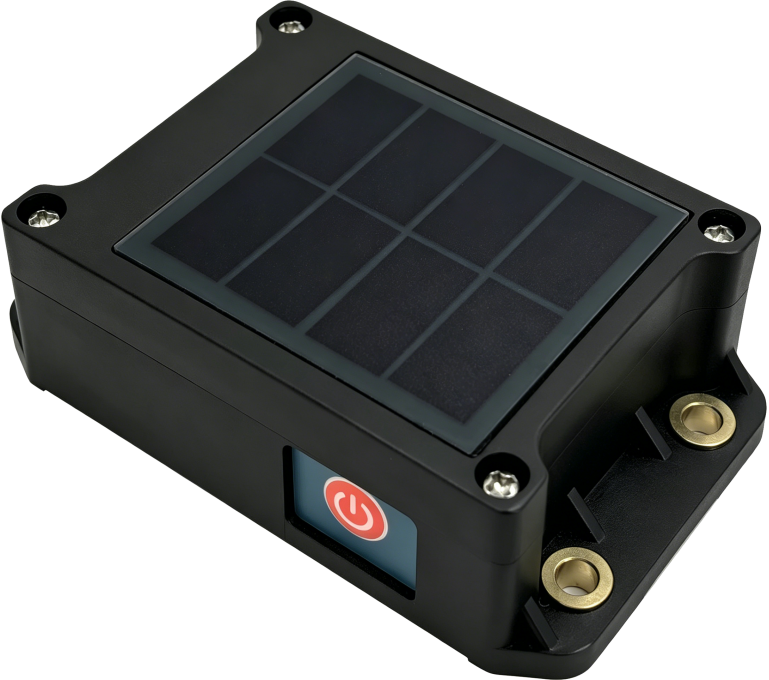

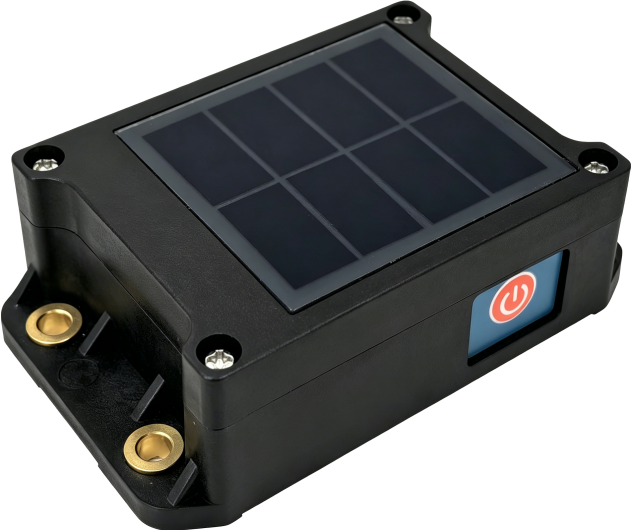

Dynamic High-Shock-Resistant Tilt Sensor

BDS450

Bluetooth Dynamic Attitude Sensor

Solar powered
Kalman filtering algorithm
Update rate up to 100Hz
Real-time 3D dynamic measurement
Bluetooth 5.1 wireless transmission
Integrated nine-axis sensor and temperature sensor

Product manual

Product Introduction

The BDS450 is a Bluetooth-enabled dynamic attitude sensor offering excellent performance at a competitive price. It is widely applicable to equipment requiring high dynamic balance, such as model aircraft, robots, agricultural machinery, construction vehicles, and forklifts. By integrating a three-axis accelerometer, a three-axis gyroscope, and a temperature compensation algorithm, combined with Kalman filtering technology, this product outputs accurate attitude data in real time. It maintains excellent stability and response speed under all attitude conditions, making it widely used in various motion attitude monitoring scenarios.

In addition to attitude data, the product also provides raw measurement information such as three-axis acceleration and three-axis gyroscope readings, and supports modification of operating parameters and expansion of system functions, facilitating adaptation to various application platforms. This product uses a Bluetooth 5.1 wireless transmission solution, adheres to the BLE protocol, and integrates 2.4GHz adaptive frequency hopping technology, achieving a line-of-sight transmission range of up to 40 meters in unobstructed environments. It also supports BLE DFU Bluetooth wireless firmware upgrades, effectively improving the flexibility and convenience of deployment in industrial settings.

Performance Parameters

BDS450		Condition	Parameters
Measurement Range		-	Roll ±180°, Pitch ±90°, Azimuth ±180° (Initial value of 0° after Bluetooth disconnection and reconnection)
Measurement Axis		-	XAxis/ YAxis/ ZAxis
Roll and Pitch Static Accuracy1)		@25℃	±0.05°
Roll and Pitch Dynamic Accuracy (RMS)		@25℃	±0.1°
Gyroscope	Gyroscope Range	-	±300°/s
	Zero-Bias Stability (10s Smoothing)	-	8.5°/h
	Angle Random Walk Coefficient (Allan)	-	0.25°/sqrt(h)
Acceleration	Acceleration Range	-	±8g
	Zero-Bias Stability (10s Mean)	-	0.1mg
	Zero-Bias Instability (Allan)	-	0.005mg
	Velocity Random Walk Coefficient (Allan)	-	0.005m/s/sqrt(h)
Zero-point tempcoefficient2)		-20~70℃	±0.01°/℃
Sensitivity tempcoefficient3)		-20~70℃	≤100ppm/℃
Power-on time		≤3.5S
Response time		0.01S
Electromagnetic compatibility		Complies with EN61000 and GBT17626
Receiver sensitivity		-96dBm
Transmit power		8dBm
Bluetooth transmission distance		50m(open, unobstructed environment)
Bluetooth frequency band		2405-2480MHZ(16 channels)
Usage time (fully charged battery)		Approximately 20 days (25℃, 8 hours of operation per day, 16 hours of sleep mode, no charging in between)
Insulation resistance		≥100megohms
Shock resistance		100g@11ms,triaxial (half-sine wave)
Vibration resistance		10grms/10~1000Hz
Waterproof rating		IP67
Casing material		PPS plastic housing
Weight		≤230g
1) Accuracy: Refers to the root mean square difference between the measured value and the actual angle error after multiple angle measurements (>16 times) under normal temperature conditions. 2) Zero-point temperature coefficient: Refers to the rate of change of the sensor's reading relative to normal temperature within its rated operating temperature range when the sensor is at zero. 3) Sensitivity temperature coefficient: Refers to the rate of change of the sensor's full-scale reading relative to its full-scale reading at normal temperature within its rated operating temperature range as a percentage of temperature.

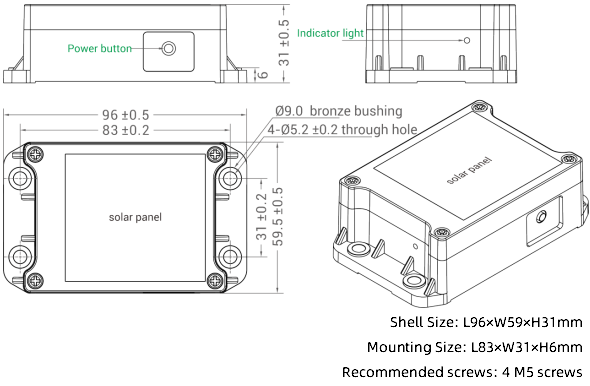

Product Dimensions
