High-Rise ; Curtain Wall Tilt Monitoring

High-rise building & curtain wall inclination monitoring

Tall buildings move — with the wind, with temperature, and with the ground beneath them. The HTS6 high-precision tilt sensor resolves changes down to 0.005°, giving owners a continuous, quantitative record of structural behaviour through the life of the building.

0.001° resolution

0.01° long-term stability

IP67 · RS485 (MODBUS)

Why supertall structures need continuous tilt data

Design codes accept that tall buildings sway; what they do not accept is unplanned differential movement. Construction errors, foundation settlement, adjacent excavation and curtain-wall fatigue all show up first as tiny, persistent tilt trends. The HTS6 captures those trends with 0.001° resolution and long-term stability of 0.01° — intended for continuous deployment over the life of the building.

Typical use cases

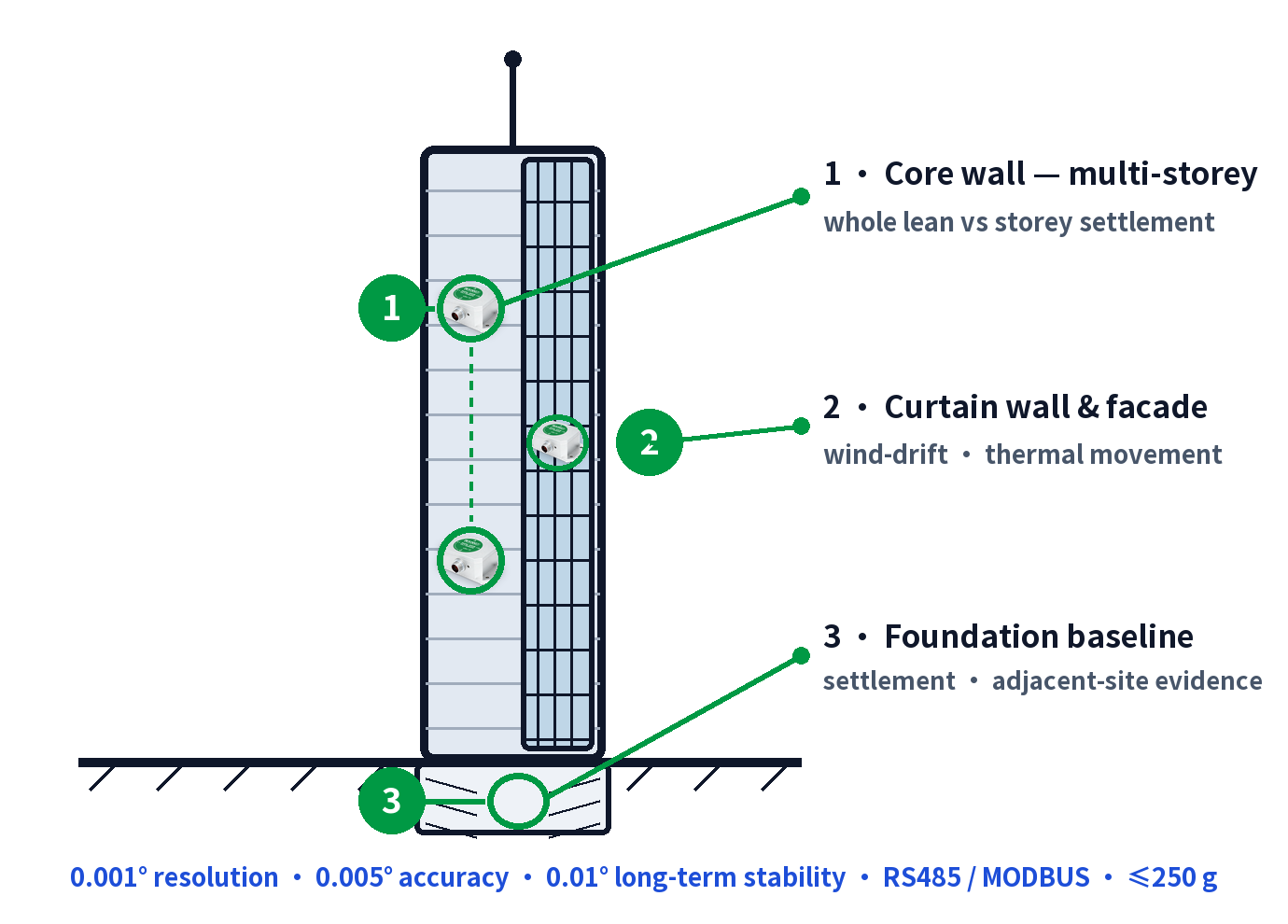

A quantitative record, floor by floor

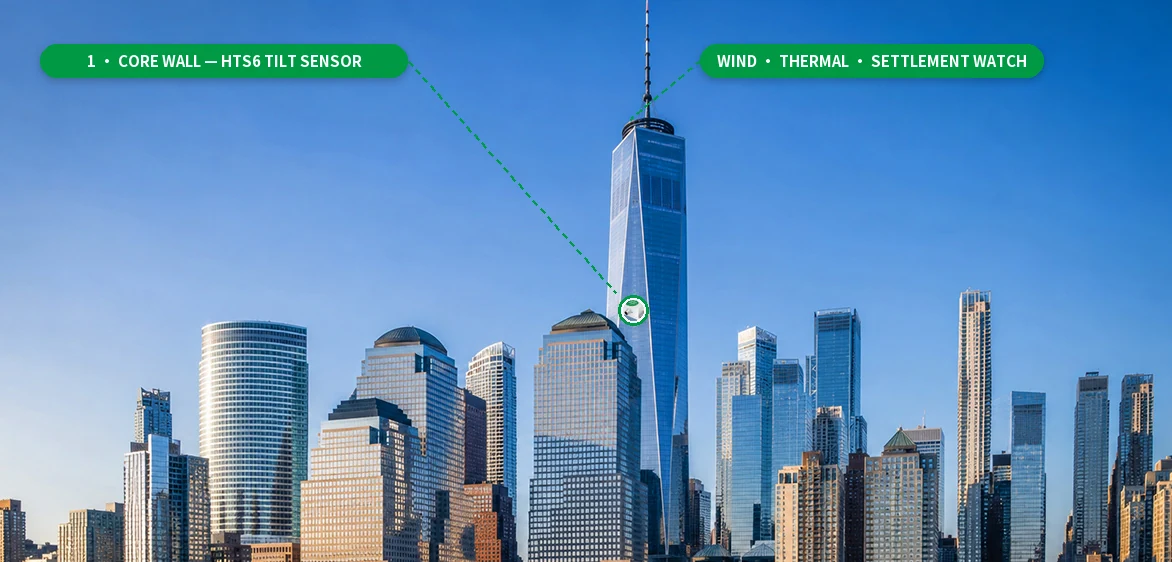

Core wall & settlement monitoring — sensors at multiple storeys distinguish whole-building lean from inter-storey differential settlement.
Curtain wall drift — lightweight HTS6 units on floor slabs and facade frames track wind-drift and thermal movement of the envelope.
Construction-stage monitoring — during construction, tilt data documents structural behaviour and can support the contractor if adjacent-site damage claims arise.
Adjacent construction impact — when a new excavation starts next door, your baseline tilt record can provide valuable evidence for the owner.
