Attitude sensing for autonomous agricultural machinery

Why the farm wants wireless attitude, not more wiring looms

A tractor and its implement are two machines joined by a moving hitch — exactly where cable looms chafe, snag and fail. The GMU200-BL removes that run entirely: Bluetooth 5.1 with 2.4 GHz adaptive frequency hopping streams attitude up to 40 m line-of-sight from any point on the machine to the cab terminal or fleet gateway, with −96 dBm receiver sensitivity holding the link through dust and crop canopy. Inside the 10-gram ABS housing, a three-axis gyroscope assisted by accelerometer and magnetometer feeds a Kalman filter with full temperature compensation (−20~65 ℃, zero-point drift ±0.01 °/℃): ±0.1° static and ±0.25° dynamic roll and pitch, ±1.5° magnetic heading — and BLE DFU means firmware updates happen wirelessly, without opening the housing.

Typical use cases

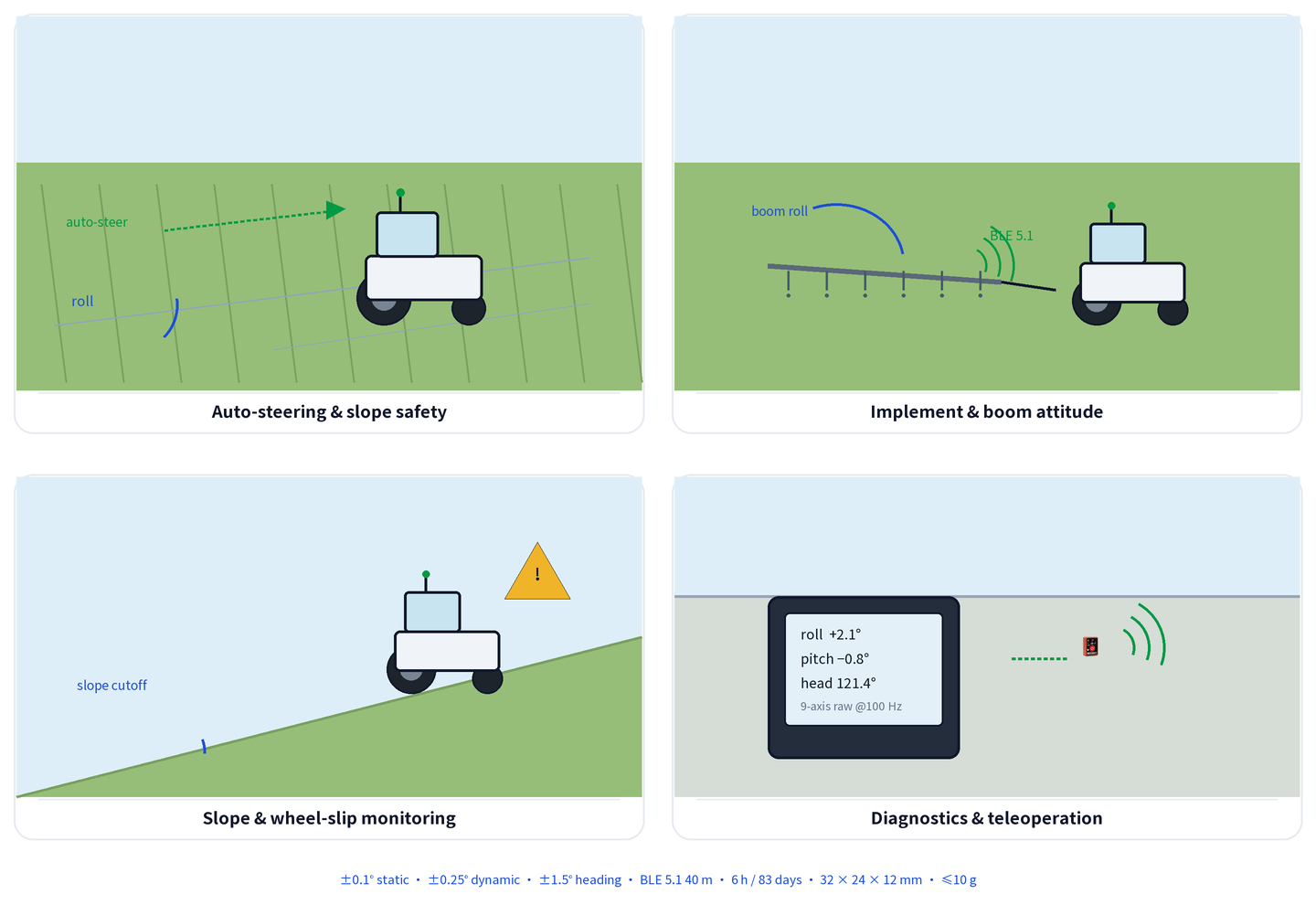

One wireless AHRS, four field jobs

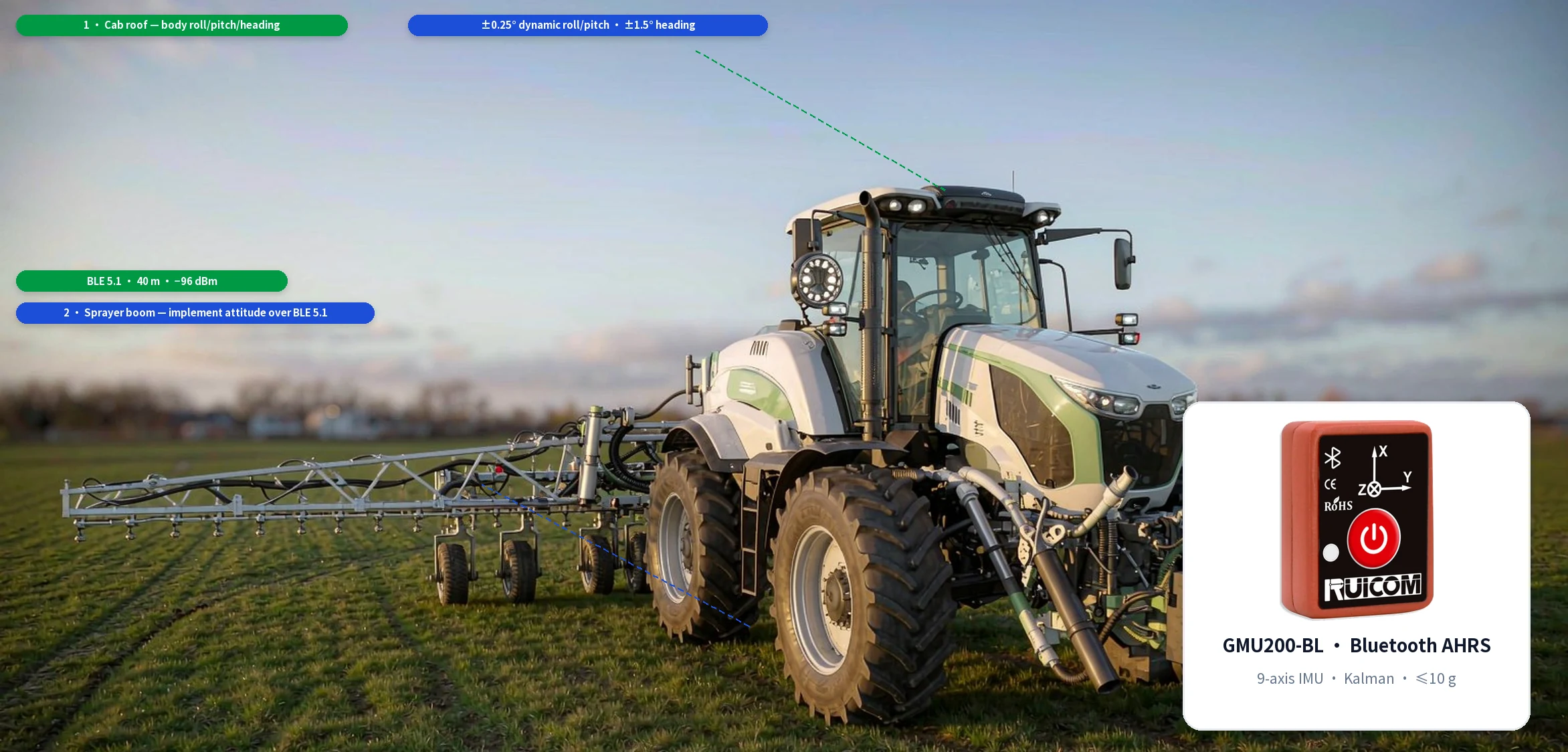

Autonomous tractors & auto-steering — body roll, pitch and magnetic heading from the cab-roof sensor back the auto-steering and slope-safety logic on graded, rutted and freshly tilled ground.
Implement & boom attitude — sprayer booms, ploughs and seeders carry their own sensor across the hitch; the cab sees implement attitude in real time over the 40 m wireless link.
Slope & wheel-slip monitoring — chassis roll/pitch triggers slope-cutoff and wheel-slip logic with ±0.25° dynamic accuracy at control-loop speed.
Field diagnostics & teleoperation — the 9-axis raw stream (acceleration, angular rate, magnetic field) reaches a tablet over BLE for vibration, tilt and teleoperation studies — 6 h per charge, 83 days standby.
